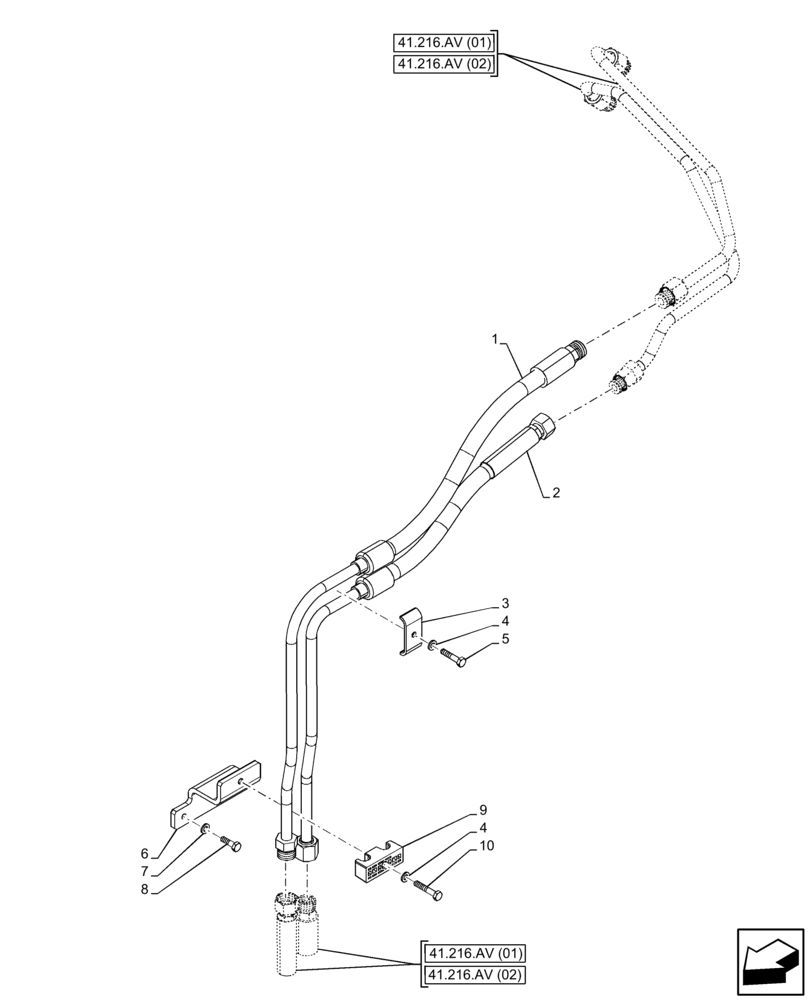

Запчасти Case IH FARMALL 75C (41.216.AV[04]) - VAR - 330581, 335581, 390328, 743559, 744580 - STEERING CONTROL, HYDRAULIC LINE (41) - STEERING

1

47526068

PIPE

Steering Cylinder, LH

1шт.

2

47526082

PIPE

Steering Cylinder, RH

1шт.

3

84473539

PLATE

1шт.

4

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

5

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

6

47422190

PLATE

1шт.

7

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

8

10902534

SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd

2шт.

9

87325889

BRACKET

2 x 12

1шт.

10

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

1шт.
