Запчасти Case IH FARMALL 75C (41.216.AB[01]) - VAR - 330581, 335581 - FRONT AXLE, OPERATING CYLINDER, 2WD (41) - STEERING

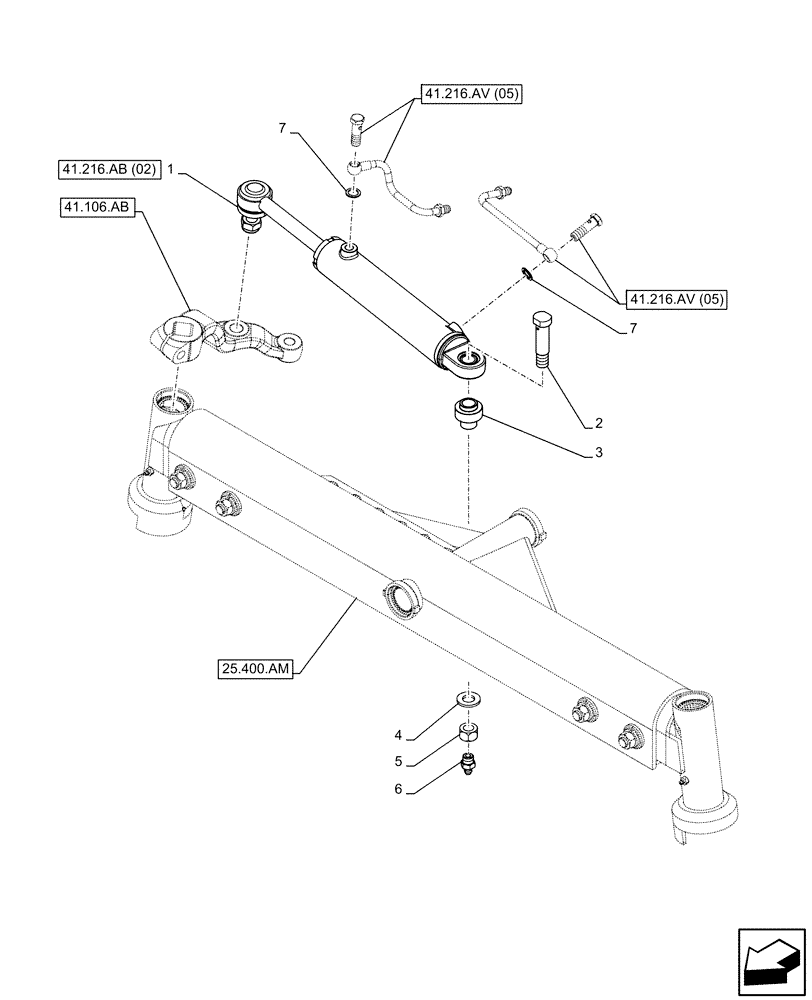

Схема запчастей Case IH FARMALL 75C - (41.216.AB[01]) - VAR - 330581, 335581 - FRONT AXLE, OPERATING CYLINDER, 2WD (41) - STEERING
7
41.216.av (05)
6
4
2
41.216.av (05)
3
41.216.ab (02)
1
7
41.106.ab
5
25.400.am

Артикул

Название

Примечание

Количество

1

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

ASSY

1шт.

2

4997697

PIN,20mm OD x 80mm L

Cylinder Control

1шт.

3

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

Cylinder Pivot

1шт.

4

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

18 x 36 x 4.2

1шт.

5

12576011

NUT,Hex, M18 x 1.5

M18 x 1.5 04 Z

1шт.

6

82824207

LUBE NIPPLE

1шт.

7

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

Выбрано товаров: 7
