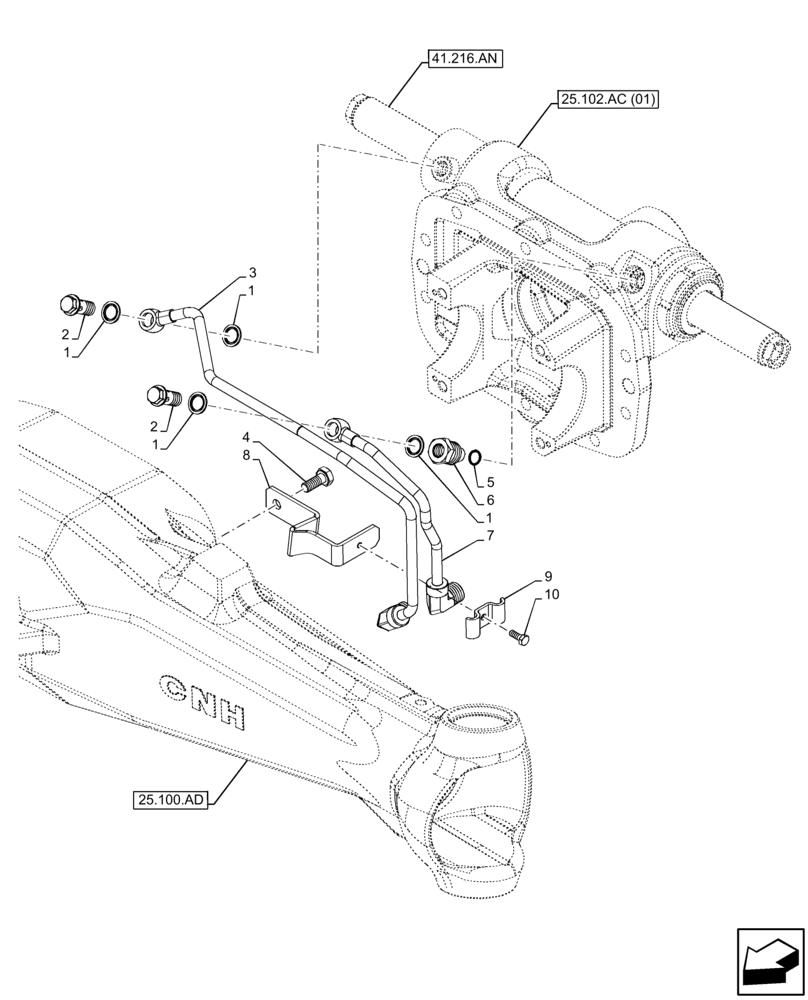

Запчасти Case IH FARMALL 75C (41.200.AO[01]) - VAR - 390328, 743559, 744580 - 4WD FRONT AXLE, LUBRICATION LINE (41) - STEERING

1

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

2

87736840

BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

3

47505925

TUBE

To Cylinder Steering, RH

1шт.

4

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

6

47124202

HYD CONNECTOR,6 - M14 x 1.5 ORFS

1шт.

7

84396922

TUBE

To Cylinder Steering, LH

1шт.

8

84384195

BRACKET

1шт.

9

4999554

CLAMP,2 Hoses

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.
