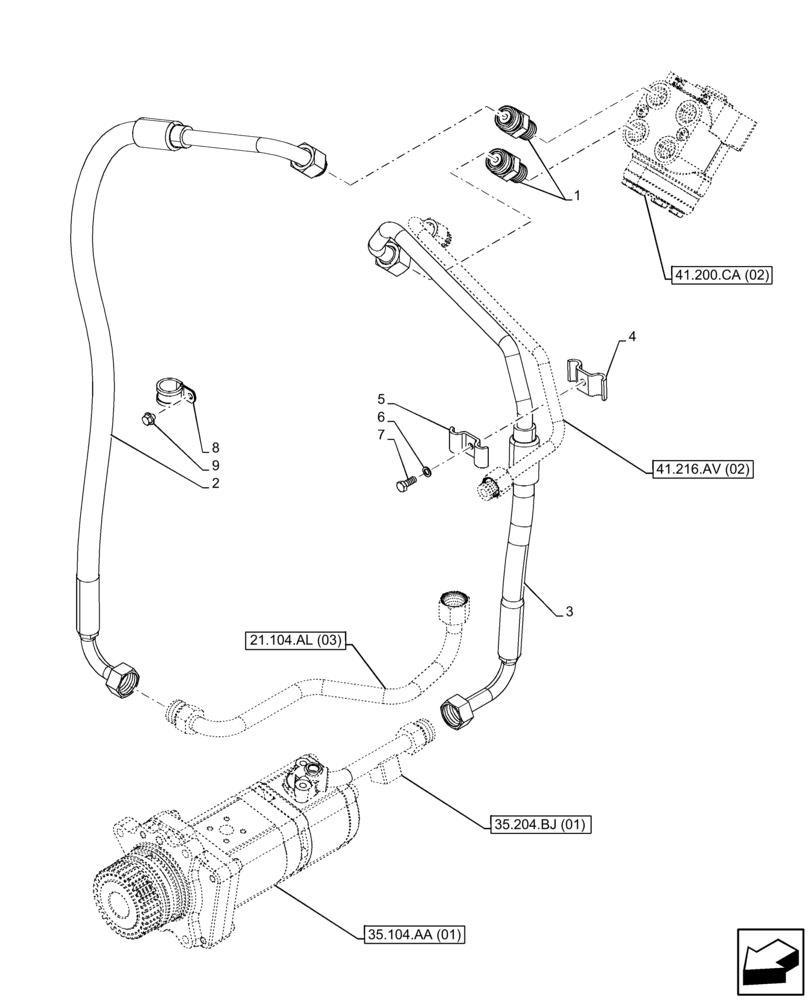

Запчасти Case IH FARMALL 75C (41.200.AA [02]) - VAR - 330581, 335581 - STEERING CONTROL VALVE, HYDRAULIC LINE, 2WD (41) - STEERING

1

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

1-14 ORFS 1/2-14 BSPP ORB

2шт.

2

47426119

PIPE

To Steering Pump, Return

1шт.

3

47525909

PIPE

To Steering Pump, Delivery

1шт.

4

47525984

BRACKET

1шт.

5

47525982

BRACKET

1шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

7

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

87015907

BOLT,M6 x 10mm, Full Thd, 8.8 PHC

M6 x 10mm, Full Thd, 8.8 PHC

1шт.
