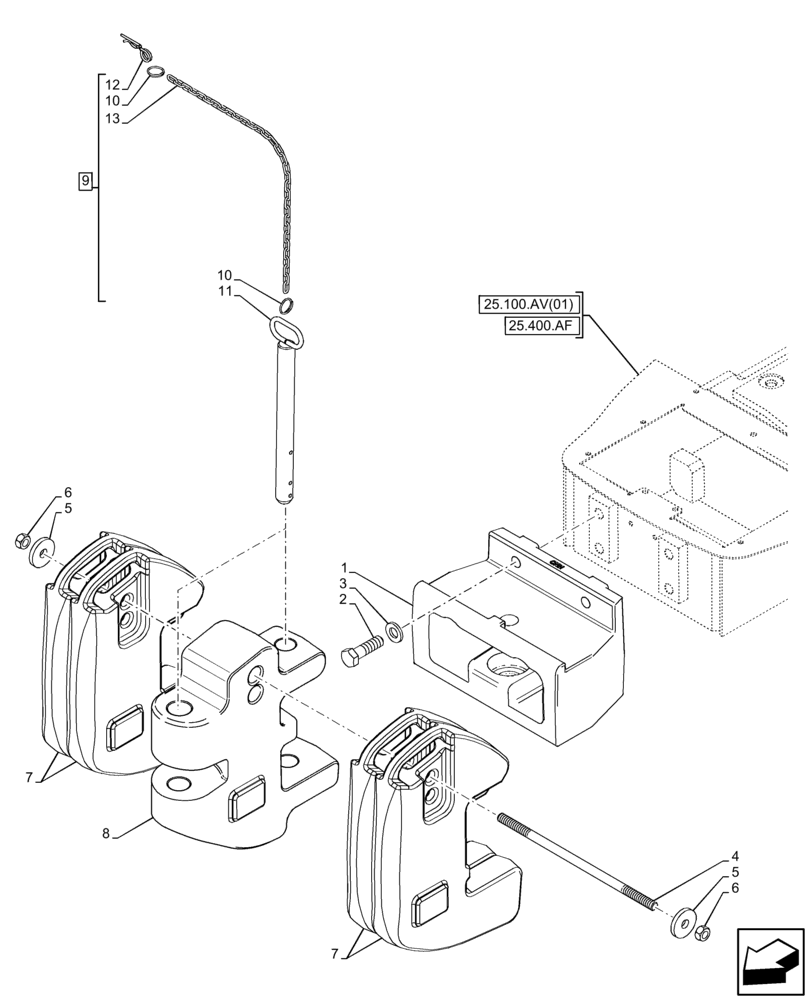

Запчасти Case IH FARMALL 75C (39.140.AF[03]) - VAR - 334215 - FRONT WEIGHT (235KG) (39) - FRAMES AND BALLASTING

1

84348660

SUPPORT

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

4

82028306

THREADED ROD,M16 x 2 x 385mm L

1шт.

5

12163321

NUT,M16, Cl 10

2шт.

6

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

2шт.

7

47056220

WEIGHT,40Kg/88Lb

40kg

4шт.

8

87325015

WEIGHT,75Kg/165Lb

75kg

1шт.

9

47132417

PIN,3.6mm OD x 64mm L

ASSY, Incl 10 - 13

2шт.

10

44901192

SNAP RING,25mm ID

2шт.

11

NSS

NOT SOLD SEPARAT

Pin, Incl in 9

1шт.

12

44901190

COTTER PIN,6.3mm x 77.6mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Chain, Incl in 9

1шт.
