(37.120.AV [01]) - VAR - 391953, 743598 - 3 POINT HITCH, LIFTING ROD

Запчасти Case IH FARMALL 75C (37.120.AV [01]) - VAR - 391953, 743598 - 3 POINT HITCH, LIFTING ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

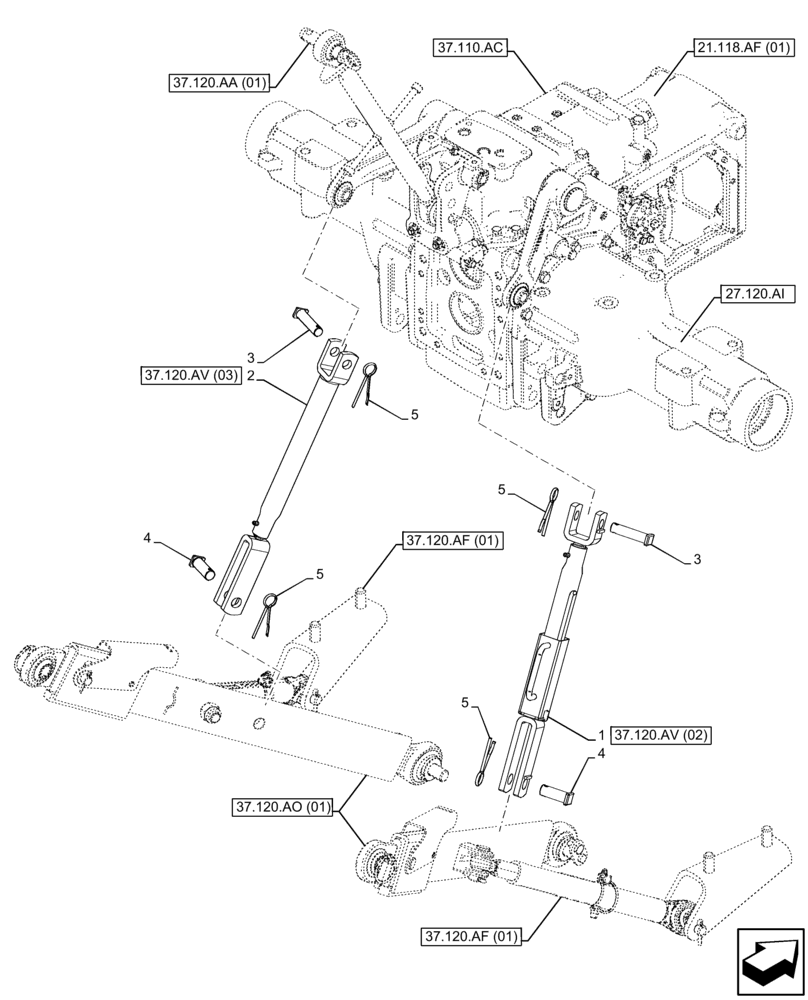

Схема запчастей Case IH FARMALL 75C - (37.120.AV [01]) - VAR - 391953, 743598 - 3 POINT HITCH, LIFTING ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.av (03)
37.120.ao (01)
37.120.af (01)
21.118.af (01)
5
3
27.120.ai
4
1
5
5
3
2
37.110.ac
37.120.av (02)
5
4
37.120.aa (01)
37.120.af (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84497524

LIFTING ROD

RH, ASSY

1шт.

2

84497531

LIFTING ROD

LH, ASSY

1шт.

3

84532195

HEADED PIN

Upper

2шт.

4

84231165

HEADED PIN,20mm OD x 58.5mm L

Lower

2шт.

5

5112606

COTTER PIN,2.5mm OD x 66.5mm L

4шт.

Выбрано товаров: 5
