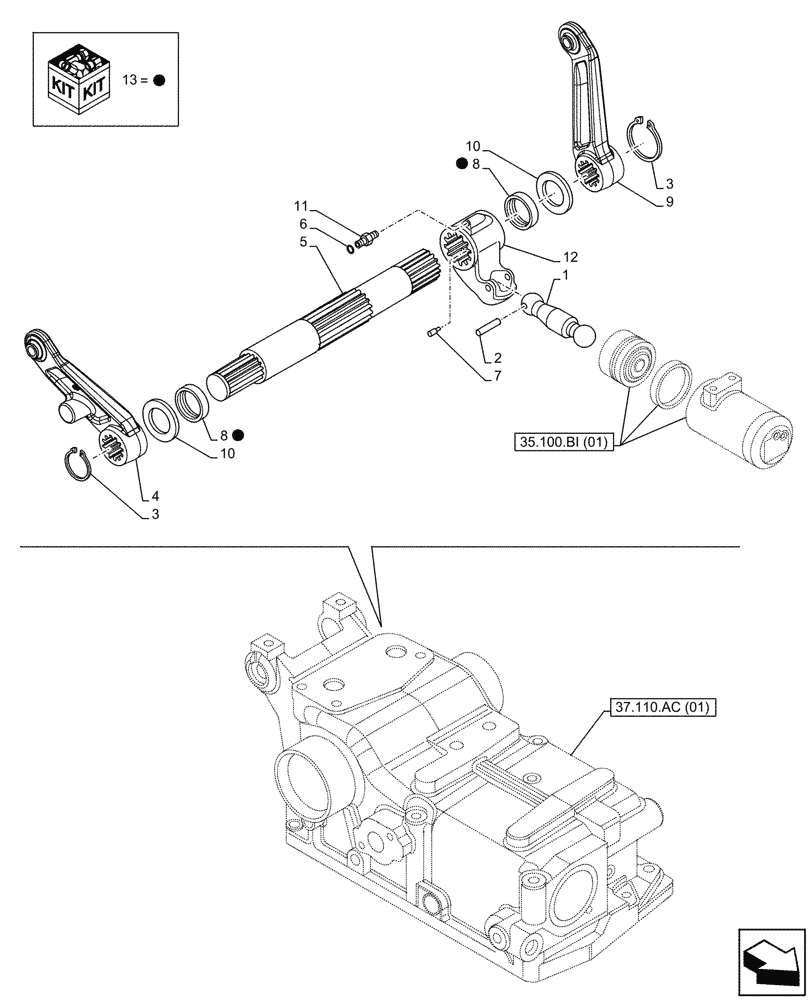

Запчасти Case IH FARMALL 75C (37.110.AQ[01]) - VAR - 390831 - HYDRAULIC LIFT, INSIDE, CONTROLS, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84188528

LINK

1шт.

2

84188532

PIN

8 x 50mm

1шт.

3

84188523

SNAP RING

2шт.

4

84529988

LIFT ARM

RH

1шт.

5

84188519

ROCKSHAFT

1шт.

6

11087776

CIRCLIP,Ext., M6, BLO

1шт.

7

877-51020

SCREW,M0 x 20mm

M10 x 20

1шт.

8

84262505

OIL SEAL, 50mm ID x 65mm OD x 8mm Thk

2шт.

9

84529991

LIFT ARM

LH

1шт.

10

84188524

RING

2шт.

11

84188525

PIN

1шт.

12

84188527

CRANK

1шт.

13

84262551

SEAL KIT

ASSY, Incl 8

1шт.

Include also Gaskets in Figure 35.100.BI (01), 37.110.AK (01) (03)

1шт.
