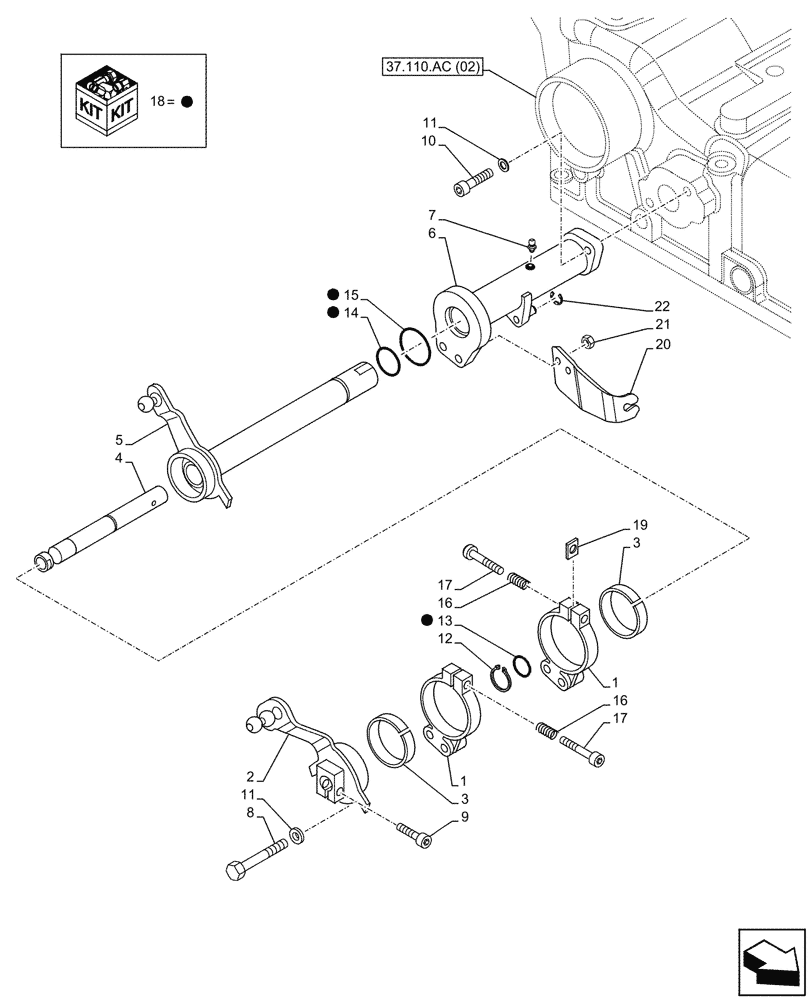

Запчасти Case IH FARMALL 75C (37.110.AK[06]) - VAR - 743595, 743596 - HYDRAULIC LIFT, INSIDE, CONTROLS, SHAFT, LEVER (W/ LIFT-O-MATIC) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84188557

HUB

2шт.

2

84263004

TRIP ARM

1шт.

3

84188558

CLUTCH

2шт.

4

84263003

CONTROL SHAFT

1шт.

5

84263005

TRIP ARM

1шт.

6

47780330

SUPPORT

1шт.

7

87588865

FITTING,M6 x 1 x 12mm L

1шт.

8

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

9

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

10

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

11

87016619

LOCK WASHER,M8

4шт.

12

84188564

SNAP RING

1шт.

13

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

14

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

15

14463180

O-RING,0.921" ID x 0.139" Width

1шт.

16

84188566

SPRING

2шт.

17

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

2шт.

18

47779933

SEAL KIT

ASSY, Incl 13 - 15

1шт.

Include also Gaskets in Figure 35.100.BI(02), 37.110.AK (04), 37.110.AQ (02)

1шт.

19

84357659

RUBBER SEAL

2шт.

20

47781207

SUPPORT

1шт.

21

16104411

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 04, ZND

2шт.

22

11087776

CIRCLIP,Ext., M6, BLO

1шт.
