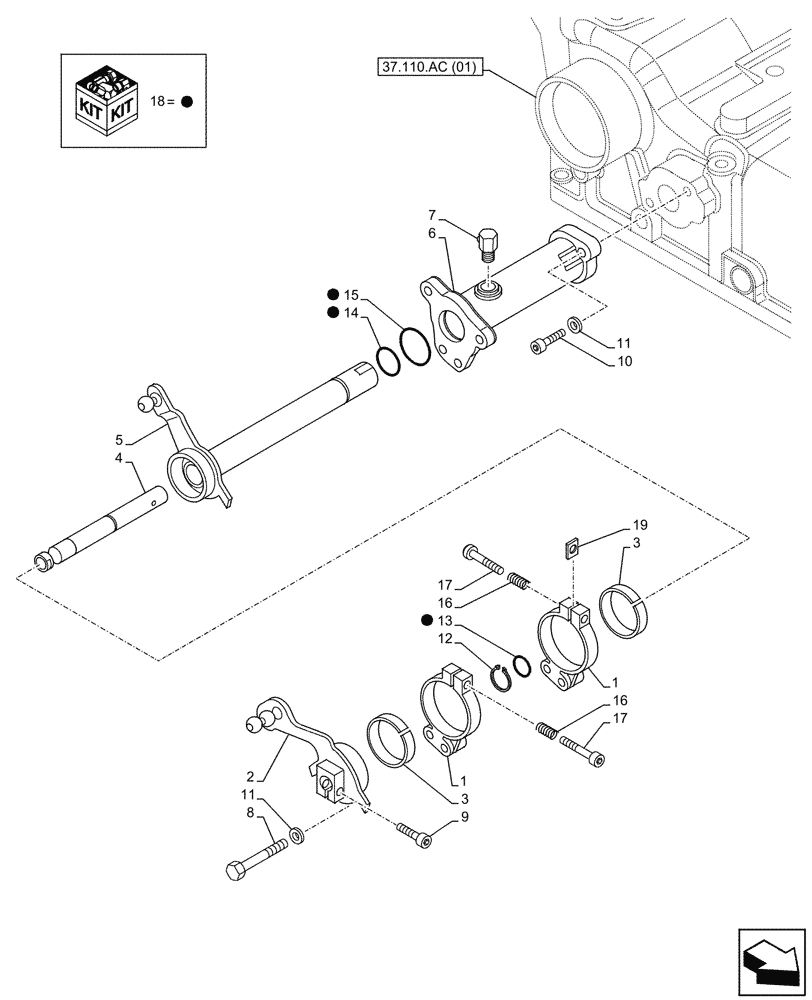

Запчасти Case IH FARMALL 75C (37.110.AK[03]) - VAR - 390831 - HYDRAULIC LIFT, INSIDE, CONTROLS, SHAFT, LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84188557

HUB

2шт.

2

84263004

TRIP ARM

1шт.

3

84188558

CLUTCH

2шт.

4

84263003

CONTROL SHAFT

1шт.

5

84263005

TRIP ARM

1шт.

6

84263006

SUPPORT

1шт.

7

13408411

LUBE NIPPLE,90 Degree , M10 x1

1шт.

8

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

9

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

10

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

11

87016619

LOCK WASHER,M8

4шт.

12

84188564

SNAP RING

1шт.

13

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

14

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

15

14463180

O-RING,0.921" ID x 0.139" Width

1шт.

16

84188566

SPRING

2шт.

17

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

2шт.

18

84262551

SEAL KIT

ASSY, Incl 13 - 15

1шт.

Include also Gaskets in Figure 35.100.BI (01), 37.110.AK (01), 37.110.AQ (01)

1шт.

19

84357659

RUBBER SEAL

2шт.
