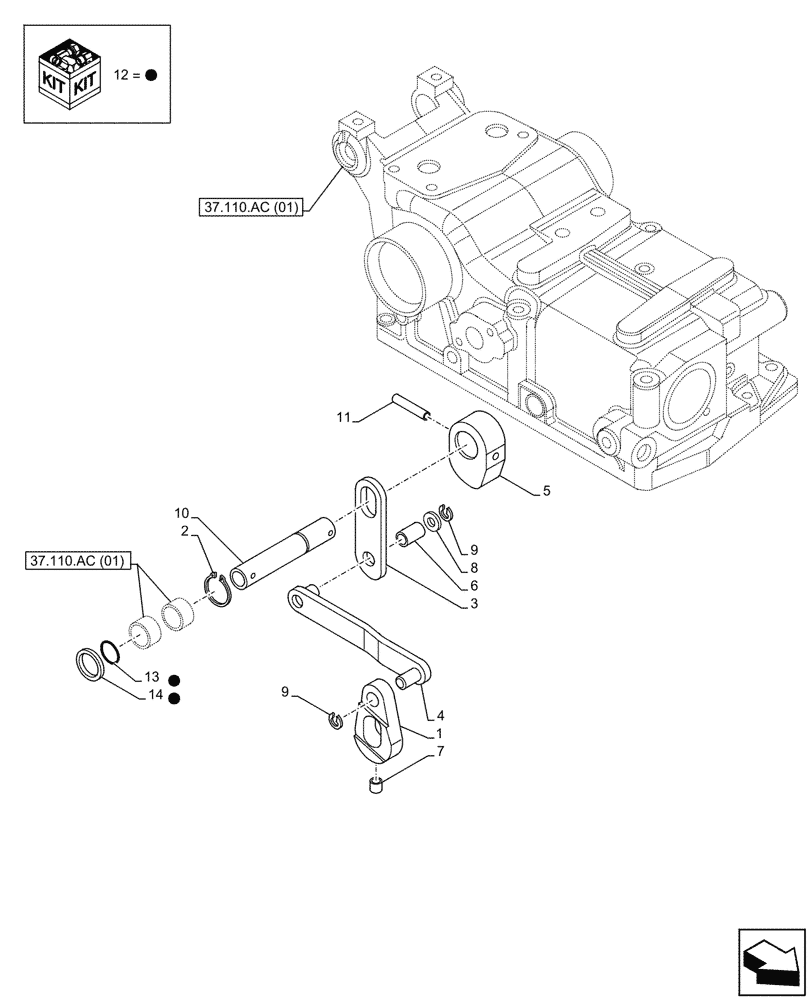

Запчасти Case IH FARMALL 75C (37.110.AK[01]) - VAR - 390831 - HYDRAULIC LIFT, INSIDE, CONTROLS, LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84262892

CRANK LEVER

1шт.

2

84188564

SNAP RING

E16 UNI 7435

1шт.

3

84262896

LEVER

1шт.

4

84262899

LEVER

1шт.

5

84262902

CAM

1шт.

6

84262904

ROLLER

1шт.

7

86836489

SET SCREW,Hex Skt, M8 x 8mm, Cup Pt

1шт.

8

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

9

86639142

SNAP RING,M8

1шт.

10

84262908

PIN

1шт.

11

14604379

PIN,6mm OD x 36mm L

M6 x 26 Slotted

1шт.

12

84262551

SEAL KIT

ASSY, Incl 13, 14

1шт.

Include also Gaskets in Figure 35.100.BI (01), 37.110.AK (03), 37.110.AQ (01)

1шт.

13

84263384

O-RING, 15.88mm ID x x 2.62mm Thk

1шт.

14

84263383

OIL SEAL,16mm ID x 20.5mm OD x 2mm Thk

1шт.
