Запчасти Case IH FARMALL 75C (37.110.AC[01]) - VAR - 390831 - HYDRAULIC LIFT, HOUSING (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

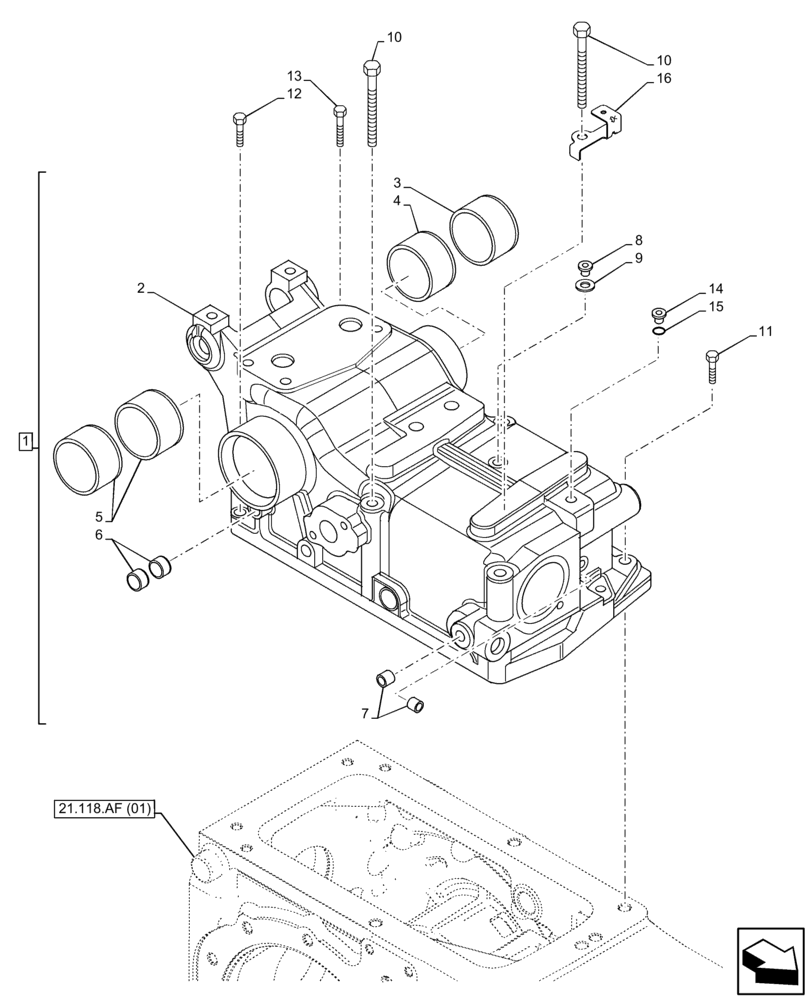

Схема запчастей Case IH FARMALL 75C - (37.110.AC[01]) - VAR - 390831 - HYDRAULIC LIFT, HOUSING (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
16
13
3
10
21.118.af (01)
14
2
7
5
9
15
8
10
6
1
11
12

Артикул

Название

Примечание

Количество

1

84529965

BODY

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

84188506

BUSHING

50/55 x 40mm

1шт.

4

84188507

BUSHING

50/55 x 30mm

1шт.

5

84188509

BUSHING

55/60 x 40mm

2шт.

6

84262500

BUSHING

16/18 x 15mm

2шт.

7

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

8

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

9

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

10

15541931

BOLT,Hex, M12 x 1.25 x 130mm, Cl 10.9

2шт.

11

15540731

SCREW,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

12

11234731

SCREW,Hex, M10 x 1.25 x 45mm, Cl 10.9

2шт.

13

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

14

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

15

14450786

O-RING,2.4mm Thk x 13.4mm ID

13.3 x 2.4 Sh 70-80

1шт.

16

84283437

BRACKET

1шт.

Выбрано товаров: 16
