(37.108.AD[03]) - VAR - 332035 - HYDRAULIC LIFT, OUTSIDE, CONTROL LEVER, W/O CAB

Запчасти Case IH FARMALL 75C (37.108.AD[03]) - VAR - 332035 - HYDRAULIC LIFT, OUTSIDE, CONTROL LEVER, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

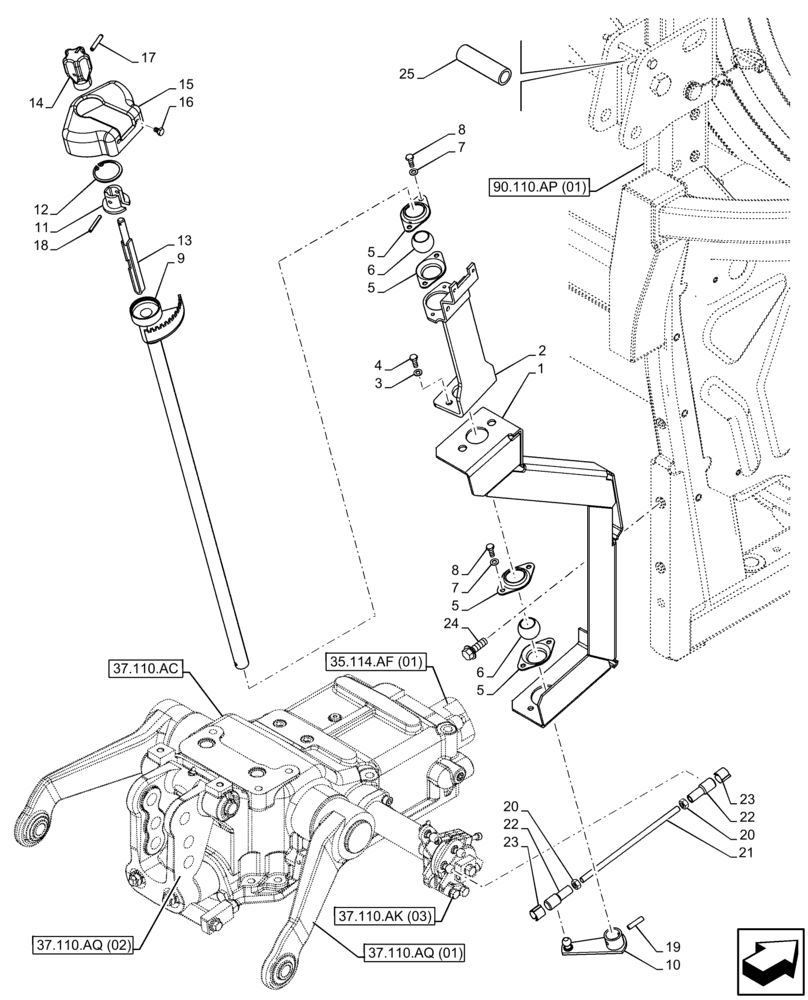

Схема запчастей Case IH FARMALL 75C - (37.108.AD[03]) - VAR - 332035 - HYDRAULIC LIFT, OUTSIDE, CONTROL LEVER, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
12
9
2
23
8
6
10
19
37.110.aq (01)
90.110.ap (01)
5
7
5
22
3
16
17
13
20
14
22
1
11
15
8
37.110.ac
18
7
37.110.aq (02)
37.110.ak (03)
35.114.af (01)
5
24
6
21
20
5
23
25
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315548

BRACKET, SUPPORTING

1шт.

2

84315233

BRACKET, SUPPORTING

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

5110722

CUP

4шт.

6

5127536

BUSHING,20.5mm ID x 32mm OD

20.5mm ID

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

9

84316009

RIGID TUBE

1шт.

10

84338359

LEVER

1шт.

11

5171002

HUB

1шт.

12

11059974

SNAP RING,M40, Int

1шт.

13

84564306

LEVER

1шт.

14

5144119

KNOB

1шт.

15

5171028

COVER

1шт.

16

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

17

14601374

LOCK PIN,M5 x 30, Slotted

1шт.

18

14164474

LOCK PIN,M4 x 32, Slotted

1шт.

19

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

20

16102314

THIN NUT,M8 x 1.25, Cl 04

2шт.

21

84338304

THREADED TIE-ROD

1шт.

22

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

M13 x 45 Type Socket Lite STL Z

2шт.

23

10125574

CLAMP,13mm

13 x 15 STL DAC

2шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

25

47374853

SPACER,8.5mm ID x 25mm OD x 49.5mm L

2шт.
