(35.701.CE[02]) - VAR - 336734, 336736 - LOADER BUCKET (SELF LEVELLING), VALVE

Запчасти Case IH FARMALL 75C (35.701.CE[02]) - VAR - 336734, 336736 - LOADER BUCKET (SELF LEVELLING), VALVE (35) - HYDRAULIC SYSTEMS

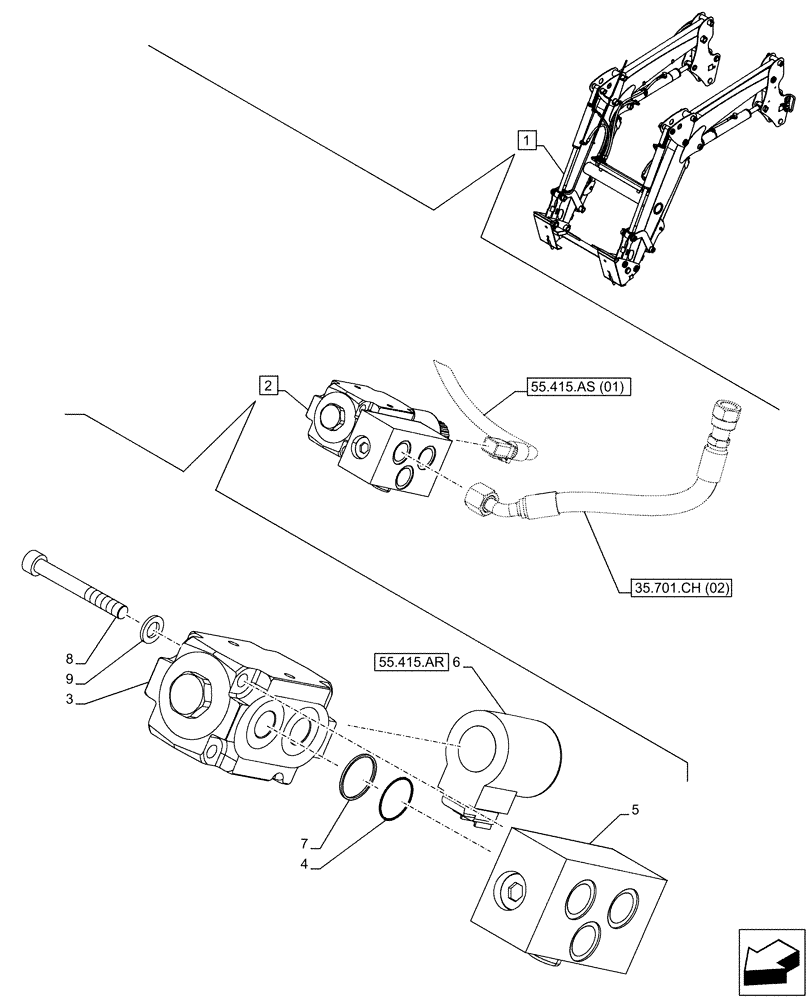

Схема запчастей Case IH FARMALL 75C - (35.701.CE[02]) - VAR - 336734, 336736 - LOADER BUCKET (SELF LEVELLING), VALVE (35) - HYDRAULIC SYSTEMS
55.415.as (01)
9
3
6
1
5
7
55.415.ar
4
8
2
35.701.ch (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

1

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

2

47657218

SOLENOID VALVE

ASSY, Incl 3 - 9

1шт.

3

47612293

HYDRAULIC VALVE

1шт.

4

47657228

O-RING

2шт.

5

47657229

BLOCK

1шт.

6

47657231

SOLENOID

1шт.

7

47680734

O-RING

2шт.

8

47612294

LOCK WASHER

4шт.

9

14309021

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

4шт.
