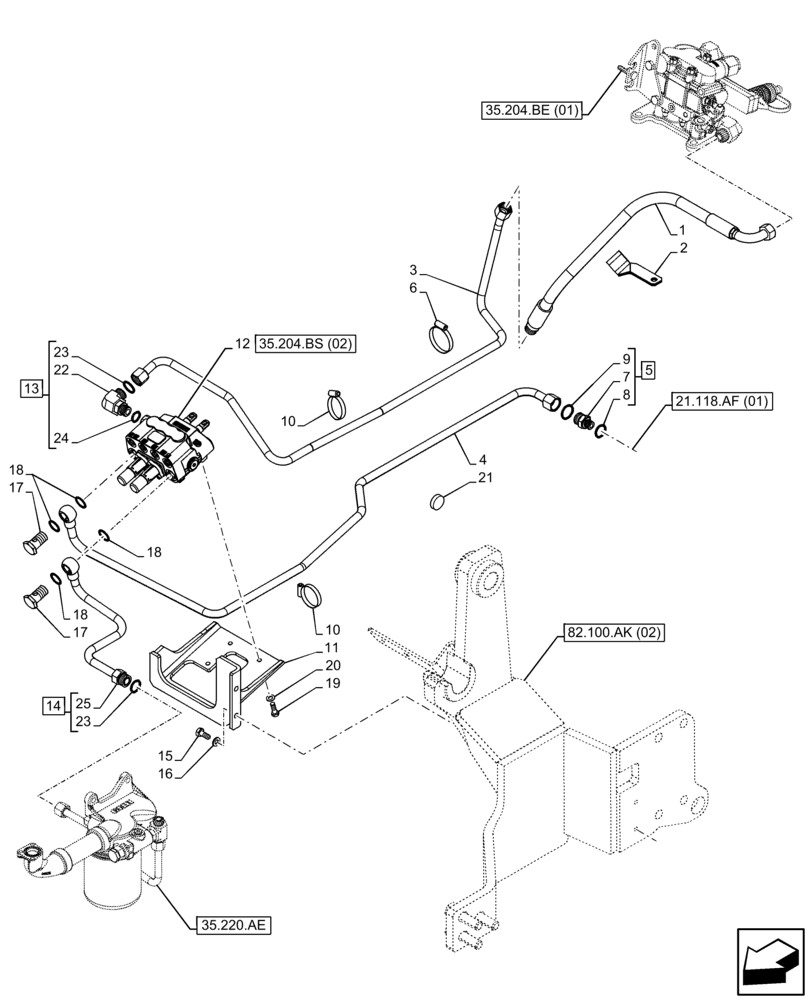

Запчасти Case IH FARMALL 75C (35.204.BS[01]) - VAR - 336125, 338125, 336780 - MID MOUNT VALVE KIT, BRACKET, LINES (35) - HYDRAULIC SYSTEMS

1

84233828

FLEXIBLE HOSE

To Remotes

1шт.

2

84309465

BRACKET

1шт.

3

47390139

RIGID TUBE

From Mid-Mount Valve to Remotes

1шт.

4

84372325

RIGID TUBE

Return Mid-Mount Valve

1шт.

5

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

6

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70mm STL ZND

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

40 x 60mm STL ZND

2шт.

11

84413926

BRACKET

1шт.

12

47395884

HYDRAULIC VALVE

Front Loader Mid-mount Valve

1шт.

13

5194728

90 ELBOW

90�, 1-14 ORFS x M22 x 1.5 ORB, ASSY, Incl 22, 23 (Qty 1), 24

1шт.

14

47528608

PIPE

Delivery Mid-Mount Valve, ASSY, Incl 23 (Qty 1), 25

1шт.

15

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

17

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

18

87667808

SEAL,22mm ID x 30mm OD x 1.5mm Thk

Self Centering M22

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

20

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

21

14329101

PLUG,M30, Tapered

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

23

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

25

NSS

NOT SOLD SEPARAT

Pipe, Incl in 14

1шт.
