(35.204.BJ[01]) - VAR - 390107, 743568 - REMOTE CONTROL VALVE, LINES

Запчасти Case IH FARMALL 75C (35.204.BJ[01]) - VAR - 390107, 743568 - REMOTE CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

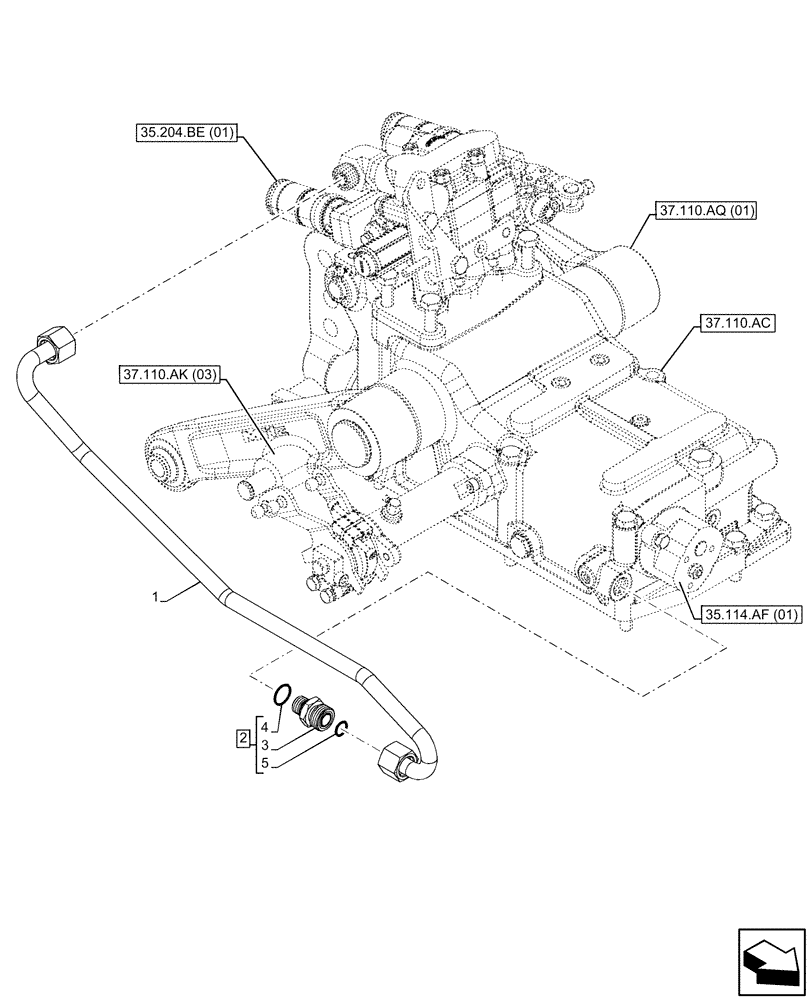

Схема запчастей Case IH FARMALL 75C - (35.204.BJ[01]) - VAR - 390107, 743568 - REMOTE CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS
1
3
2
5
37.110.aq (01)
37.110.ac
35.114.af (01)
4
37.110.ak (03)
35.204.be (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84362538

RIGID TUBE

Pressure Delivery Lift

1шт.

2

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 5
