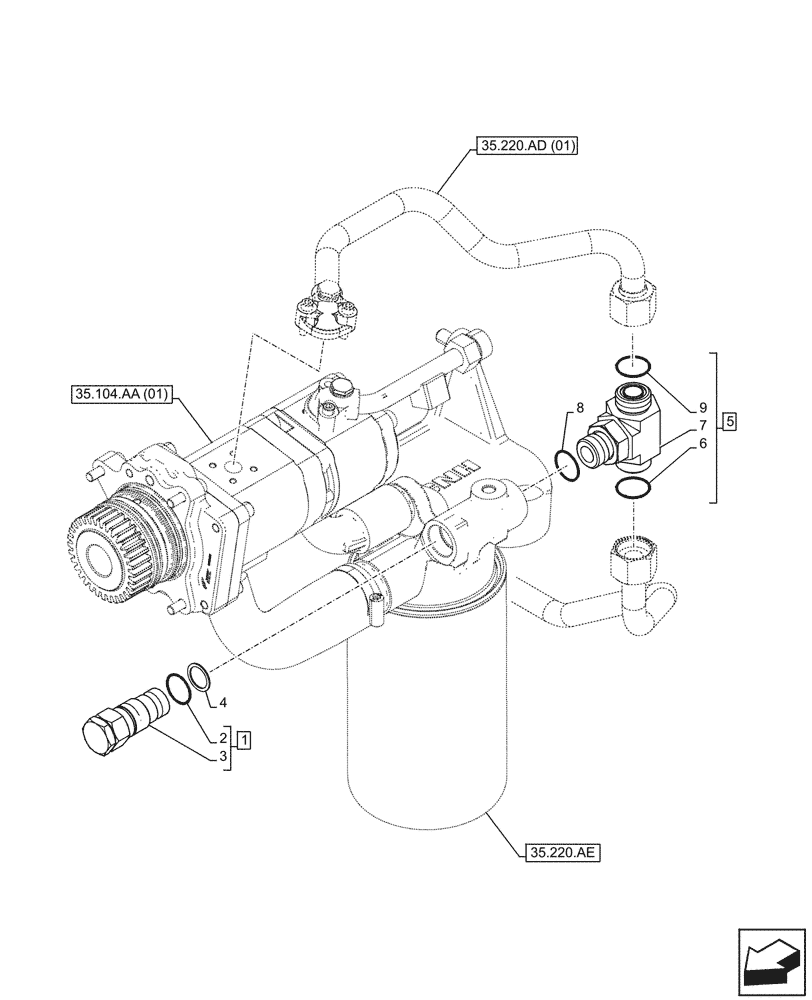

Запчасти Case IH FARMALL 75C (35.204.AY) - VAR - 390831, 743595, 743596 - PRESSURE RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

47128782

VALVE PRESSURE RELIE

ASSY, Incl 2, 3

1шт.

2

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

4

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

5

87676315

TEE

M27 x 2, ASSY, Incl 6 - 9

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
