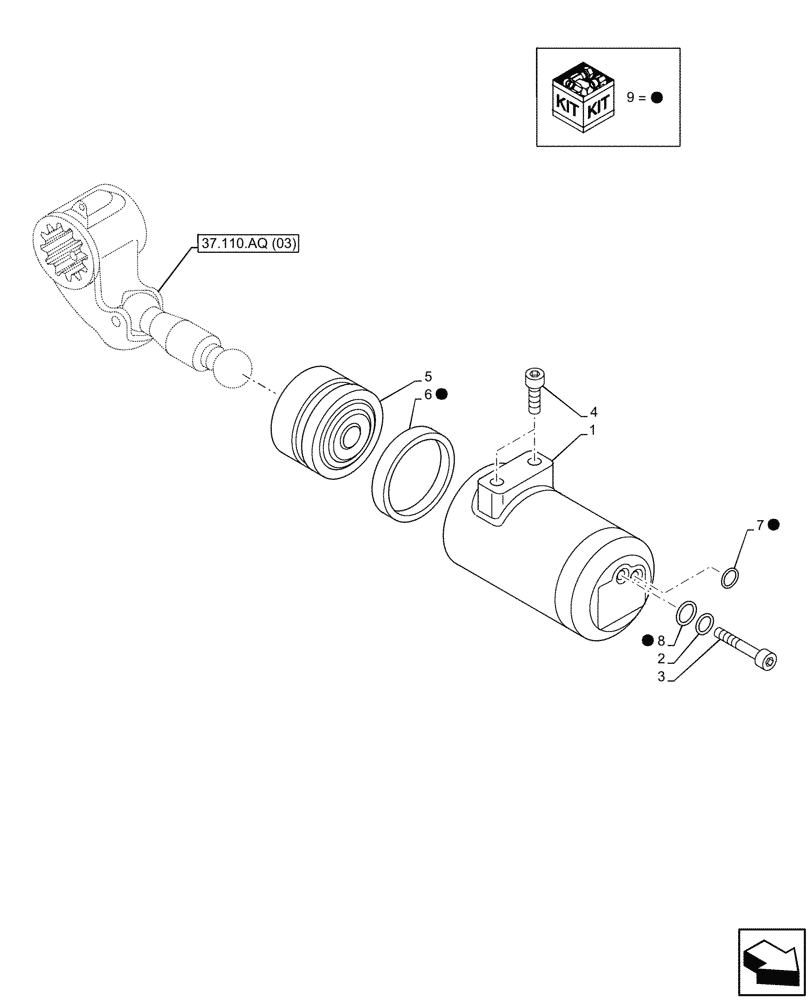

Запчасти Case IH FARMALL 75C (35.100.BI[02]) - VAR - 743595, 743596 - HYDRAULIC LIFT, CYLINDER, PISTON (W/ LIFT-O-MATIC) (35) - HYDRAULIC SYSTEMS

1

47780308

LIFT CYLINDER

1шт.

2

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

3

84188531

SCREW

1шт.

4

14422321

HEX SOC SCREW,M12 x 45mm, Cl 8.8, Full Thd

2шт.

5

84188529

PISTON

1шт.

6

84262508

SEALING RING

1шт.

7

84188533

SEALING RING,11.91mm ID x 2.62 Thk

1шт.

8

84188534

SEALING RING,15.54mm ID x 2.62 Thk

1шт.

9

47779933

SEAL KIT

ASSY, Incl 6 - 8

1шт.

Include also Gaskets in Figure 37.110.AK (04) (06), 37.110.AQ (03) (04)

1шт.
