(33.202.AR[02]) - VAR - 330276 - BRAKE CYLINDER, ROPS - BEGIN YR 08-MAY-2014

Запчасти Case IH FARMALL 75C (33.202.AR[02]) - VAR - 330276 - BRAKE CYLINDER, ROPS - BEGIN YR 08-MAY-2014 (33) - BRAKES & CONTROLS

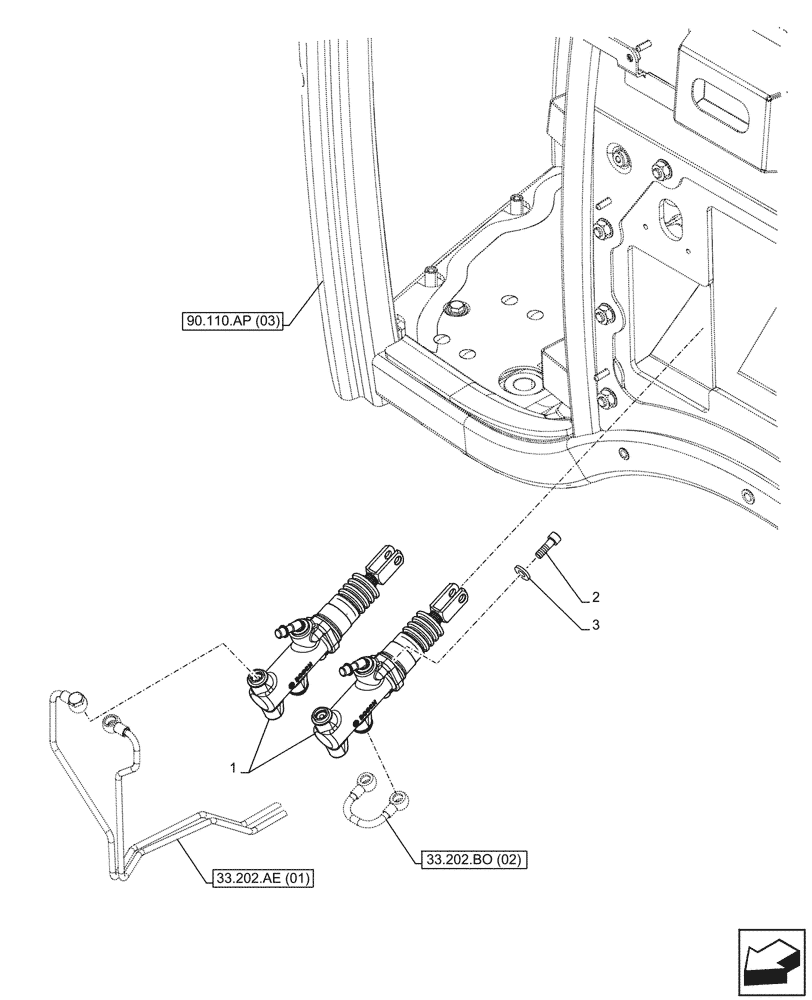

Схема запчастей Case IH FARMALL 75C - (33.202.AR[02]) - VAR - 330276 - BRAKE CYLINDER, ROPS - BEGIN YR 08-MAY-2014 (33) - BRAKES & CONTROLS
33.202.ae (01)
3
2
1
90.110.ap (03)
33.202.bo (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84598470

MASTER CYLINDER,32.4mm Stroke

ASSY

2шт.

2

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

Выбрано товаров: 3
