Запчасти Case IH FARMALL 75C (33.202.AN[02]) - VAR - 330276 - BRAKE FLUID RESERVOIR, ROPS - BEGIN YR 08-MAY-2014 (33) - BRAKES & CONTROLS

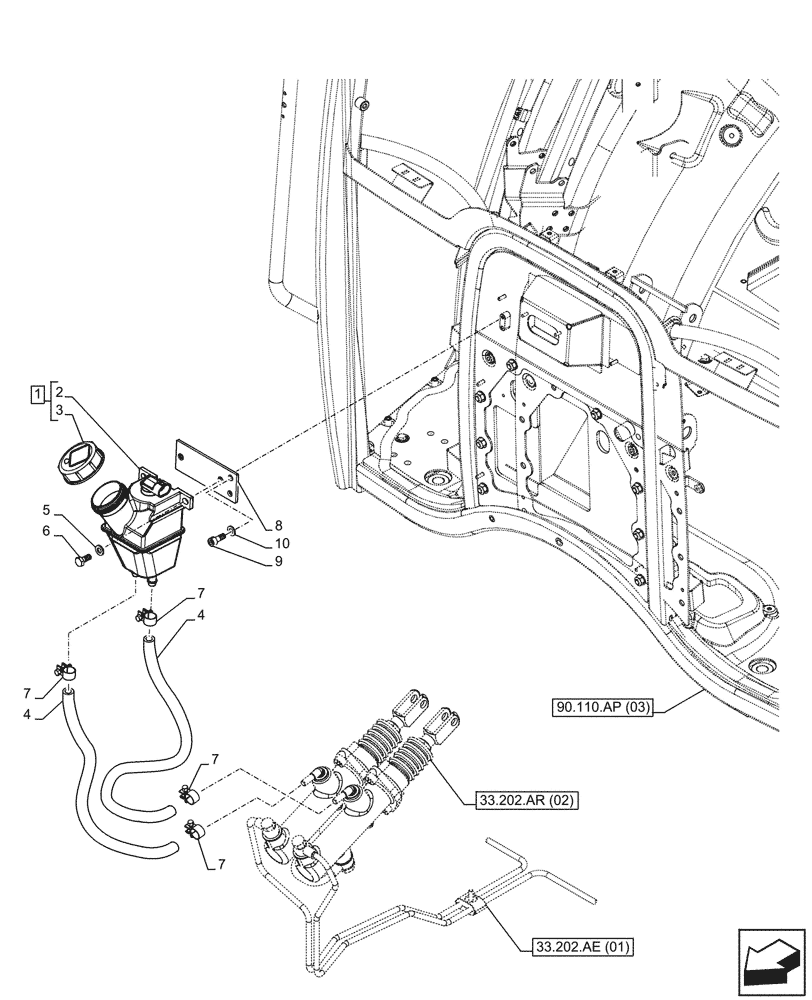

Схема запчастей Case IH FARMALL 75C - (33.202.AN[02]) - VAR - 330276 - BRAKE FLUID RESERVOIR, ROPS - BEGIN YR 08-MAY-2014 (33) - BRAKES & CONTROLS
33.202.ae (01)
4
7
1
7
10
8
7
6
9
2
5
4
7
3
90.110.ap (03)
33.202.ar (02)

Артикул

Название

Примечание

Количество

1

84370294

BRAKE FLUID TANK

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 1

1шт.

3

84573122

PLUG

1шт.

4

84234053

FLEXIBLE HOSE

D-7x12, 250mm

2шт.

5

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

2шт.

6

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

7

10186590

CLAMP,11mm - 13mm

4шт.

8

47447980

BRACKET

1шт.

9

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

Выбрано товаров: 10
