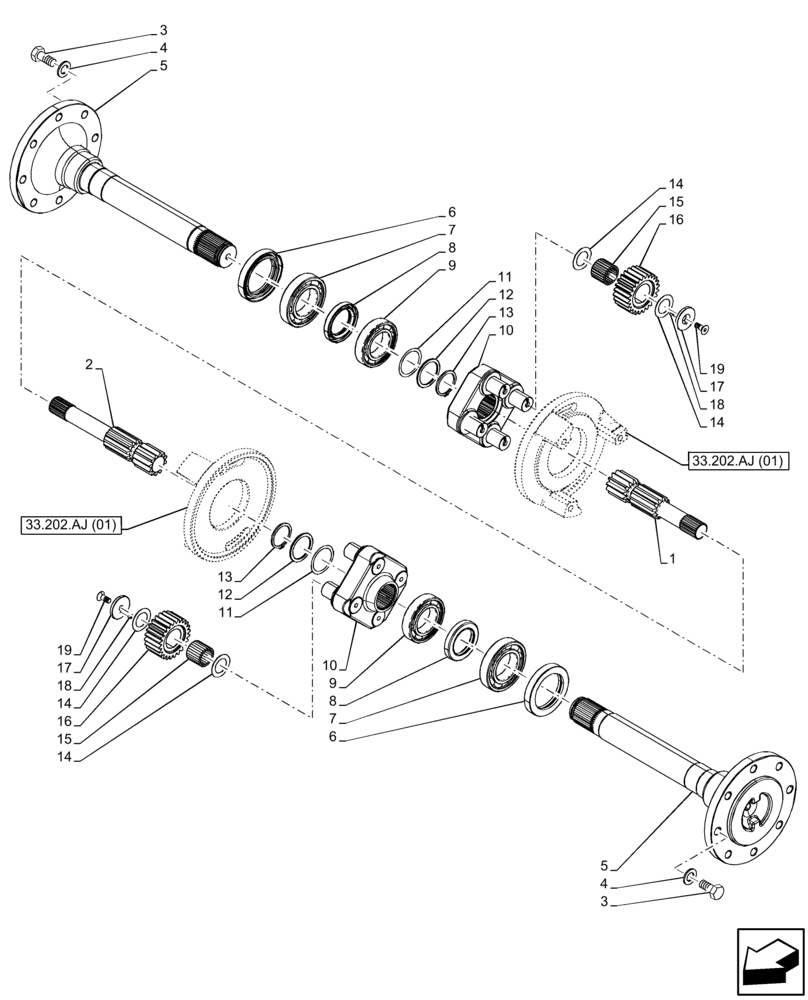

Запчасти Case IH FARMALL 75C (27.120.AF[02]) - VAR - 390448, 743558, 340559 - FINAL DRIVE, SHAFT & GEAR (27) - REAR AXLE SYSTEM

1

84379886

SHAFT

RH, L 245mm

1шт.

2

84379885

SHAFT

LH, L 293mm

1шт.

3

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

16шт.

4

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

5

84226051

AXLE

Driving Wheel

2шт.

6

5123370

OIL SEAL,80mm ID x 110mm OD x 16mm Thk

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

8

5111415

OIL SEAL,57mm ID x 85mm OD x 12mm Thk

2шт.

9

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

2шт.

10

84226131

PLANET CARRIER

2шт.

11

87387607

SHIM

2шт.

12

87387605

SPACER

2шт.

13

5138419

SNAP RING,M50

2шт.

14

84253119

THRUST WASHER

16шт.

15

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

8шт.

16

84226079

PINION

8шт.

17

87654057

SPACER

8шт.

18

584787

DOWEL

8шт.

19

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

8шт.
