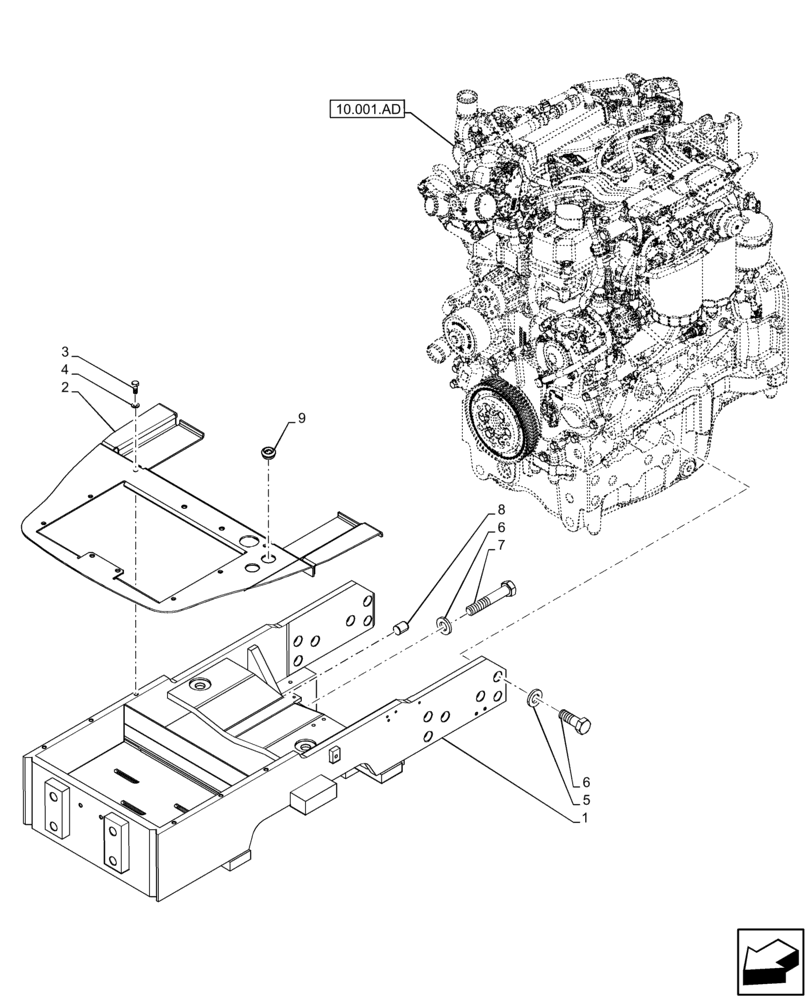

Запчасти Case IH FARMALL 75C (25.400.AF) - VAR - 334216, 334358 - AXLE SUPPORT, 2WD (25) - FRONT AXLE SYSTEM

1

47445864

SUPPORT

1шт.

2

47444949

PLATE

1шт.

3

16043511

SCREW

6шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

5шт.

5

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

6

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20 x 38 x 5.2 ZNM

8шт.

7

15989134

BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9

2шт.

8

84398609

PIN,20mm OD x 25mm L

2шт.

9

81862738

PLUG,M38 x 28 x 5mm

2шт.
