(25.400.AD) - VAR - 330581, 335581 - FRONT AXLE, EXTENSION, 2WD

Запчасти Case IH FARMALL 75C (25.400.AD) - VAR - 330581, 335581 - FRONT AXLE, EXTENSION, 2WD (25) - FRONT AXLE SYSTEM

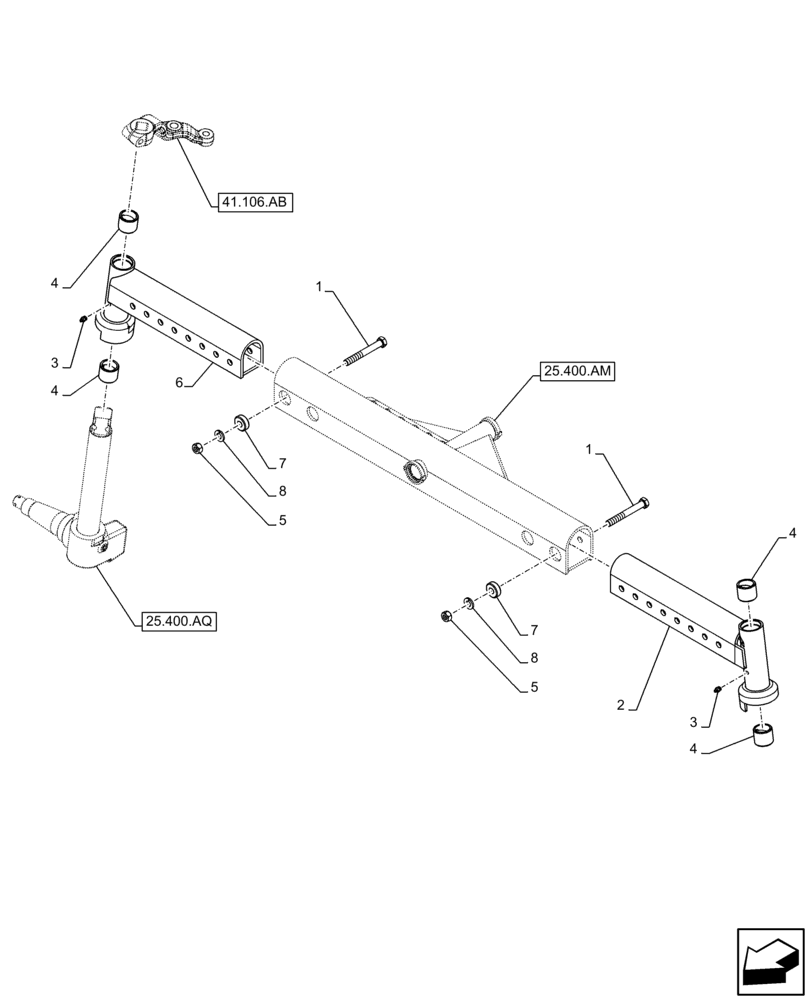

Схема запчастей Case IH FARMALL 75C - (25.400.AD) - VAR - 330581, 335581 - FRONT AXLE, EXTENSION, 2WD (25) - FRONT AXLE SYSTEM
3
4
4
1
8
25.400.aq
7
7
4
41.106.ab
25.400.am
8
2
5
3
5
1
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15981921

BOLT,Hex, M16 x 1.5 x 125mm, Cl 8.8

4шт.

2

87699330

END

LH

1шт.

3

84351730

FITTING,M10 x 1

2шт.

4

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

38.05mm ID x 40.04mm OD x 40mm Thk

4шт.

5

15502611

NUT,Hex, M16 x 1.5

M16 x 1.5 x 24 R8 ZND

4шт.

6

87699331

END

RH

1шт.

7

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

4шт.

8

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

4шт.
