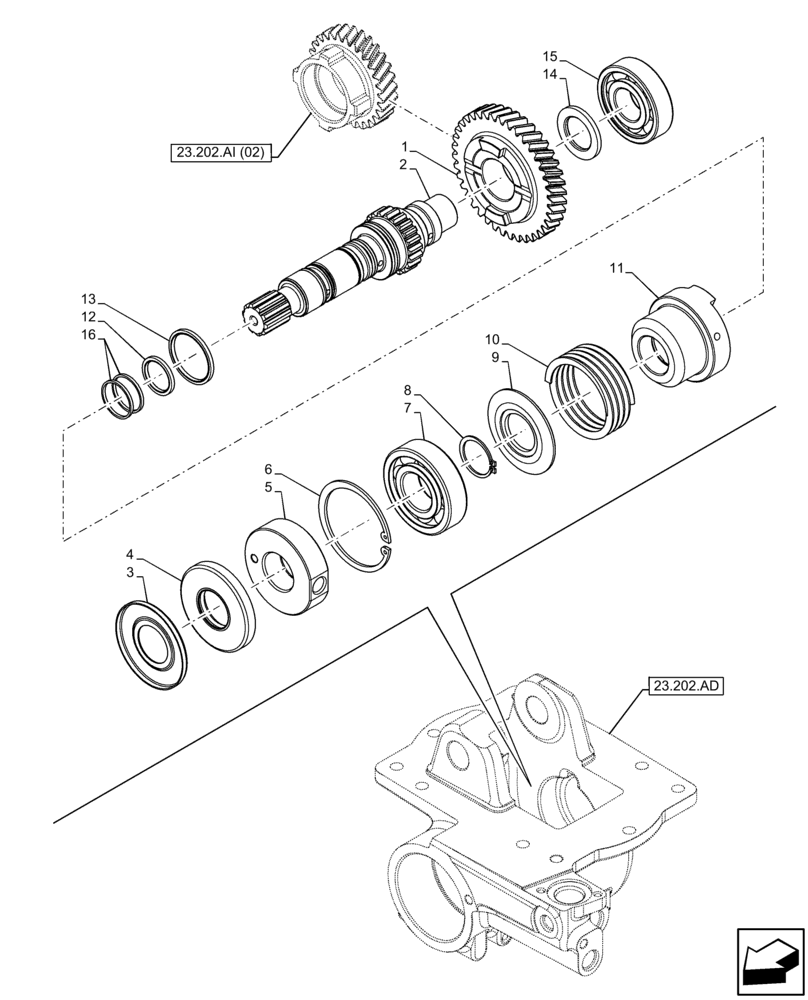

Запчасти Case IH FARMALL 75C (23.202.AI[01]) - VAR - 335677, 335694, 335695, 335696, 744580 - TRANSMISSION, SHAFT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

84304373

GEAR,39T

1шт.

2

84497091

SHAFT

1шт.

3

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

4

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

1шт.

5

5197419

MANIFOLD

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

8

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

9

84495762

DISC,35.2mm ID x 78mm OD x 8mm Thk

1шт.

10

87704329

SPRING,77mm OD x 86mm Free Length

1шт.

11

5176903

SLEEVE,21T

1шт.

12

5160580

GASKET,27.55mm ID x 35.12mm OD x 3.2mm Thk

1шт.

13

5152665

SEAL,42.55mm ID x 50.12mm OD x 3.2mm Thk

1шт.

14

5160571

THRUST WASHER,30.25mm ID x 48mm OD x 4mm Thk

1шт.

15

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

16

5195944

SEALING RING,31.8mm ID x 35mm OD x 2.5mm Thk

2шт.
