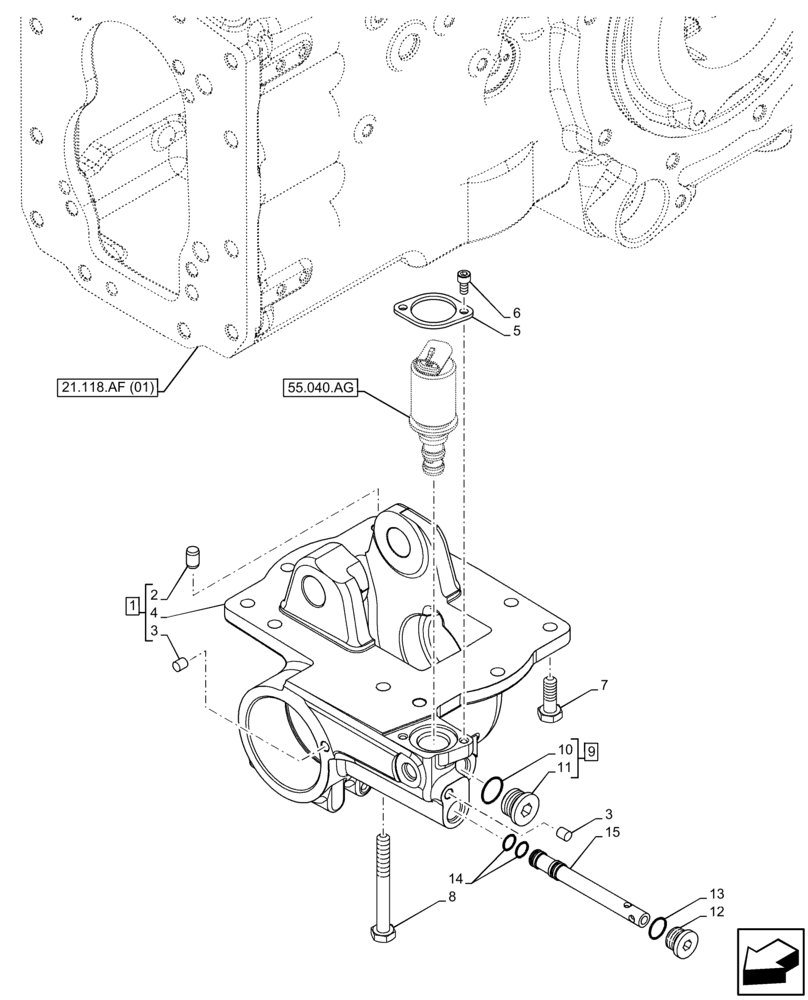

Запчасти Case IH FARMALL 75C (23.202.AD) - VAR - 335677, 335694, 335695, 335696, 744580 - IDLER, HOUSING, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

84284020

HOUSING

ASSY, Incl 2 - 4

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

14536490

PLUG,8.00mm Dia x 15.70mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

5

5194826

BRACKET

Valve Solenoid

1шт.

6

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

7

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

7шт.

8

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

1шт.

9

10118840

PLUG,M22 x 1.5 x 18, Brass

ASSY, Incl 10, 11

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.

12

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

14453080

O-RING,0.426" ID x 0.07"

2шт.

15

84235482

SPOOL

1шт.
