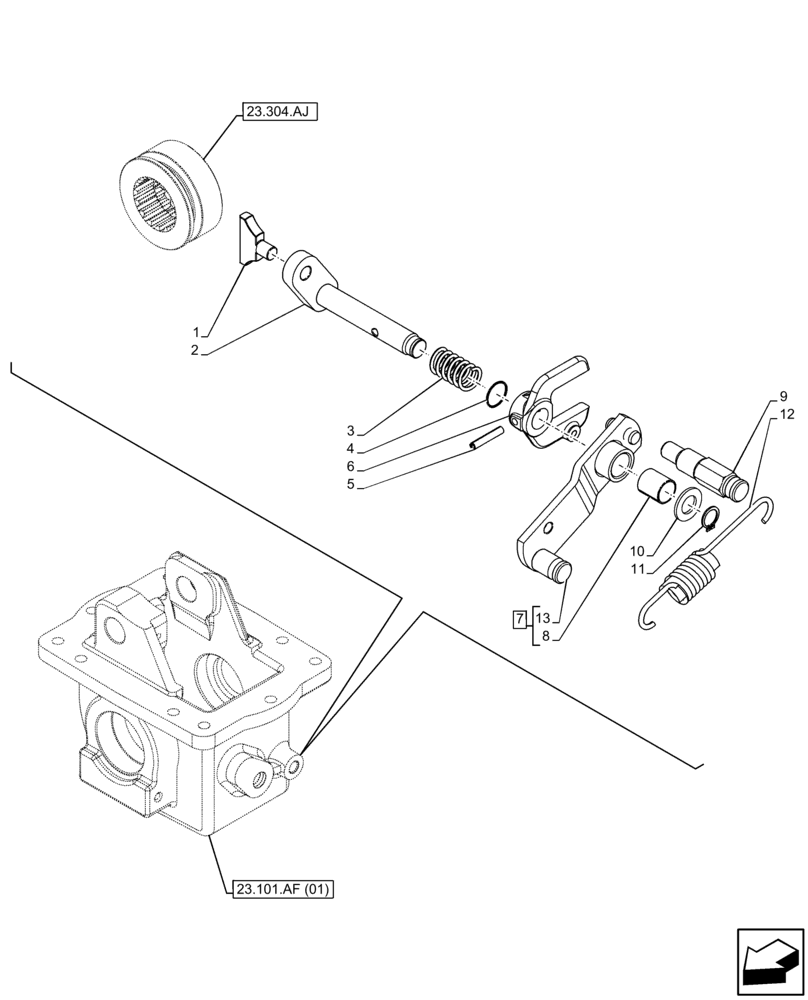

Запчасти Case IH FARMALL 75C (23.101.AL) - VAR - 330328, 335672, 335676, 390328, 743559 - IDLER, CONTROL, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

5095899

SLIDING PAD

1шт.

2

84307286

CONTROL LEVER,16mm OD x 107.5mm L

1шт.

3

559699

SPRING

1шт.

4

559983

O-RING,15.88mm ID x 21mm OD x 2.62mm

1шт.

5

13940470

ROLL PIN

5 x 28

1шт.

6

5129032

YOKE

1шт.

7

84306136

CONTROL LEVER

ASSY, Incl 8, 13

1шт.

8

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

16.04mm ID x 17.95mm OD x 20mm Thk

1шт.

9

5129031

SCREW,Special, M12 x 1.25 x 74mm

Special

1шт.

10

5129024

WASHER,14.1mm ID x 25mm OD x 2mm Thk

1шт.

11

11066276

SNAP RING,M14, Ext

1шт.

12

5129033

SPRING,Extension, 23mm OD x 130mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 7

2шт.
