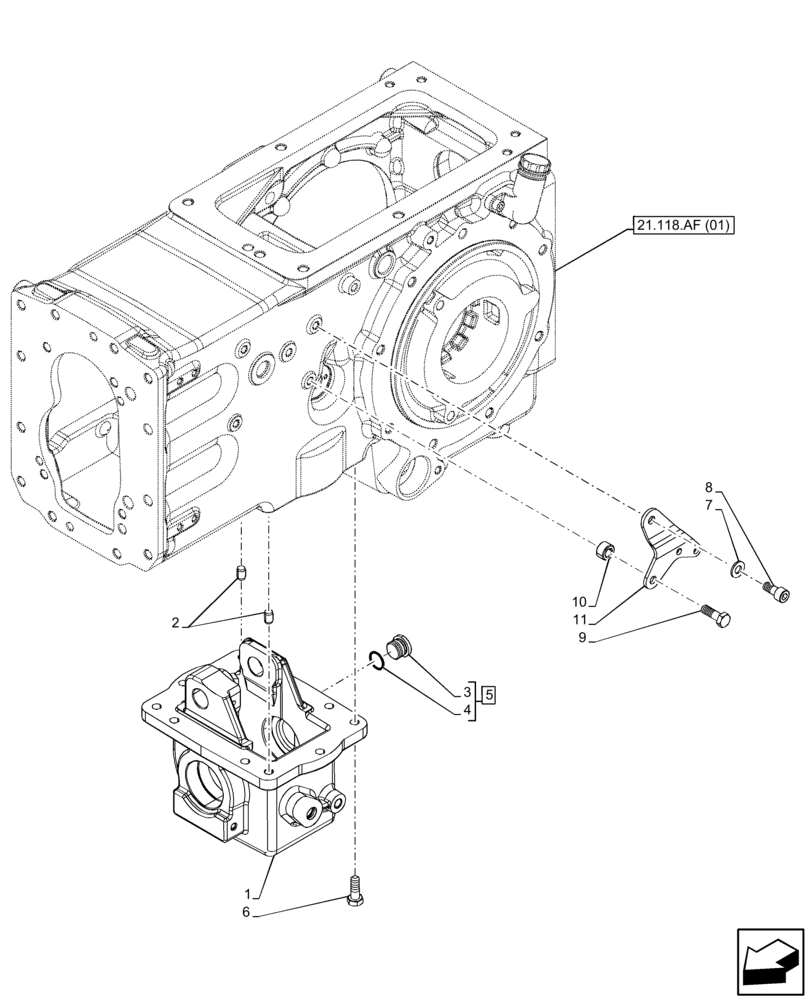

Запчасти Case IH FARMALL 75C (23.101.AF[01]) - VAR - 330328, 335672, 335676, 390328, 743559 - IDLER, HOUSING, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

84244897

HOUSING

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

10118840

PLUG,M22 x 1.5 x 18, Brass

ASSY, Incl 3, 4

1шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

7

14496624

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

8

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

9

84145860

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8

M10 x 1.25 x 30 8.0 BLO

1шт.

10

84341377

SPACER,10.5mm ID x 20mm OD x 12mm L

1шт.

11

84339089

BRACKET

1шт.
