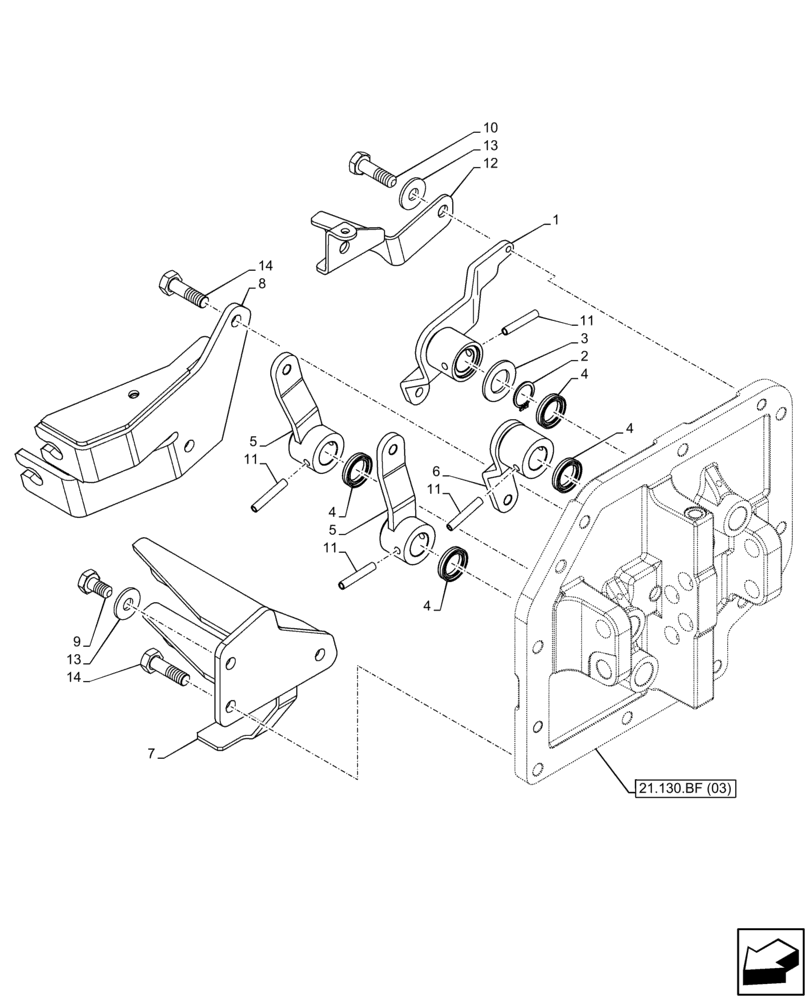

Запчасти Case IH FARMALL 75C (21.130.AZ[06]) - VAR - 330272, 330276, 332079, 334176, 743546, 744576 - TRANSMISSION, CONTROLS, LEVER, CAB (12X12) (21) - TRANSMISSION

1

84427386

LEVER

1шт.

2

11066876

SNAP RING,M20, Ext

1шт.

3

84423710

WASHER,20.2mm ID x 35mm OD x 2.25mm Thk

1шт.

4

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

4шт.

5

84225198

CONTROL LEVER

2шт.

6

84225199

CONTROL LEVER

1шт.

7

84296099

BRACKET

1шт.

8

84250790

BRACKET

1шт.

9

15970534

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

11

13910570

ROLL PIN,M6 x 36, Coiled

4шт.

12

84286344

BRACKET

1шт.

13

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

3шт.

14

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.
