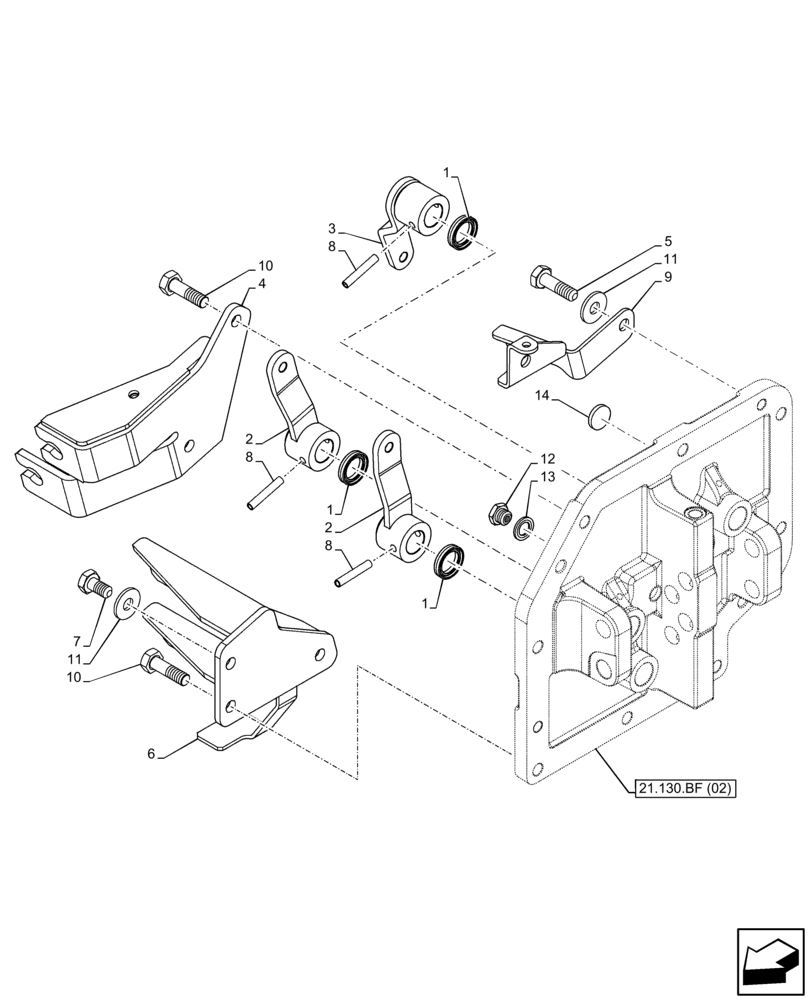

Запчасти Case IH FARMALL 75C (21.130.AZ[04]) - VAR - 330274, 334174, 334175, 390067 - TRANSMISSION, CONTROLS, LEVER, W/O CAB (21) - TRANSMISSION

1

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

3шт.

2

84225198

CONTROL LEVER

2шт.

3

84225199

CONTROL LEVER

1шт.

4

84250790

BRACKET

1шт.

5

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

6

84296099

BRACKET

1шт.

7

15970534

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

8

13910570

ROLL PIN,M6 x 36, Coiled

3шт.

9

84286344

BRACKET

1шт.

10

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

11

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

3шт.

12

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

13

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

14

14328701

PLUG,M20, Tapered

1шт.
