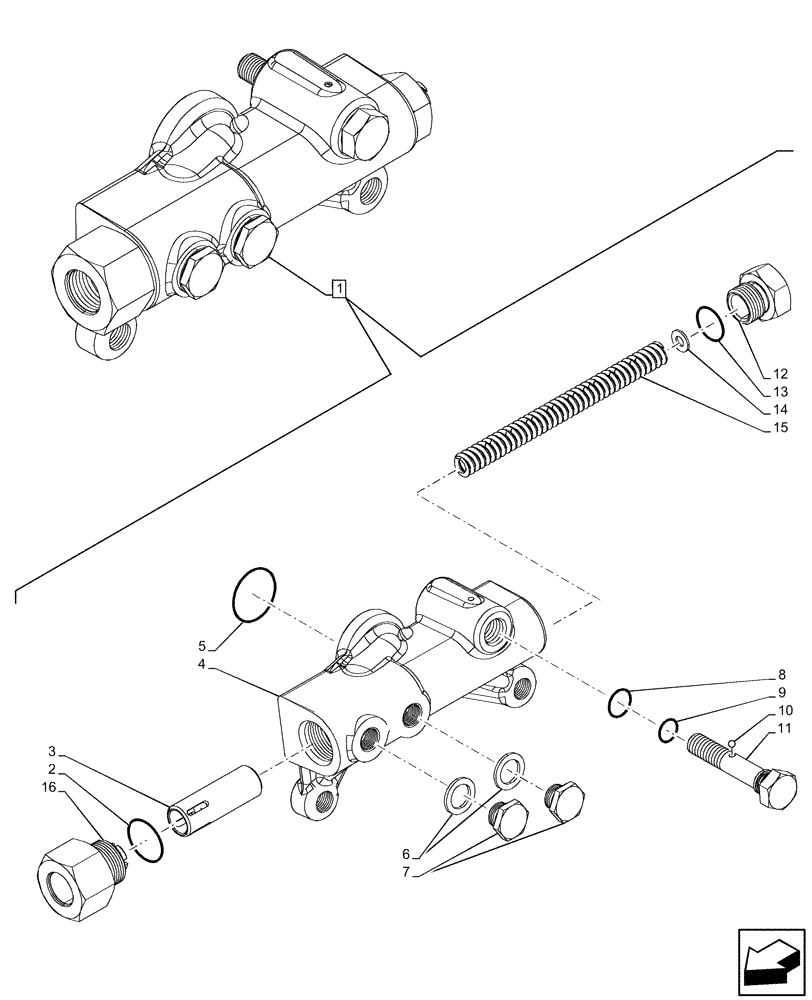

Запчасти Case IH FARMALL 75C (21.100.AN[03]) - VAR - 330069, 333068, 333069, 390068 - TRANSMISSION, VALVE, COMPONENTS (21) - TRANSMISSION

1

84488429

HYDRAULIC VALVE

ASSY, 16 Bar, Incl 2 - 16

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

7

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

8

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

9

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

10

20419150

BALL,3.17mm OD, Gr 100, CRS

3.175mm

1шт.

11

5188808

BOLT

M10 x 1.25mm

1шт.

12

5176204

PLUG,M18 x 1.5

M18 x 1.5mm

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

Flat 5 x 11

1шт.

15

5157119

SPRING,11.5mm x 127mm

1шт.

16

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

M22 x 1.5mm

1шт.
