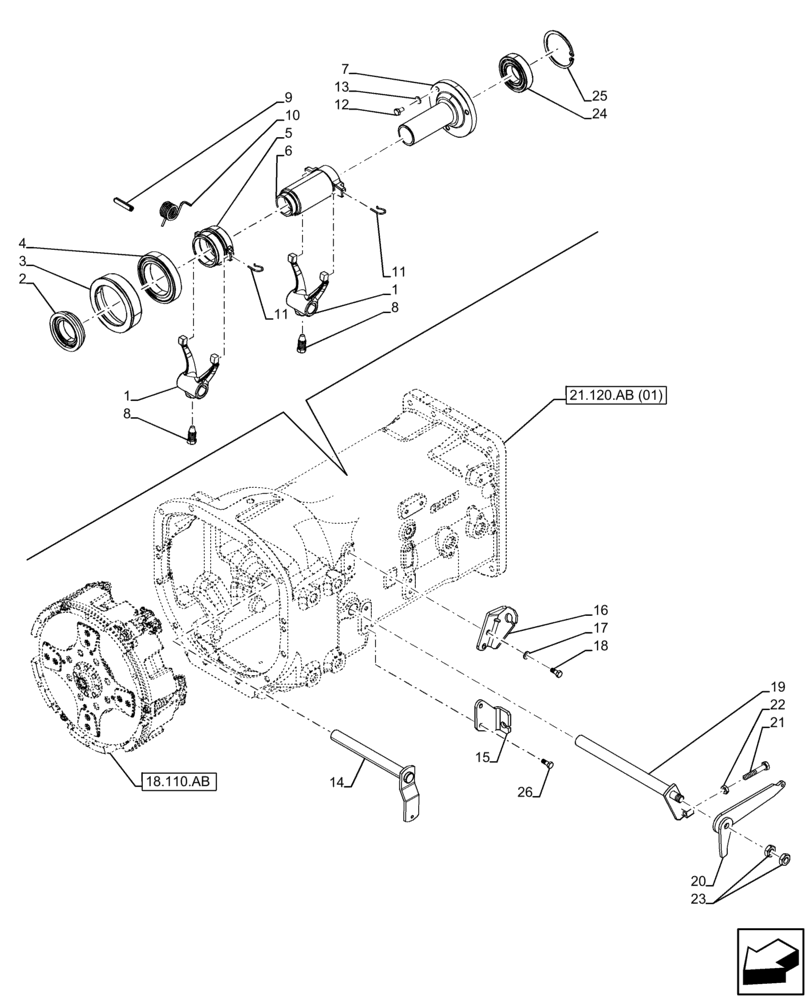

Запчасти Case IH FARMALL 75C (18.100.AR[02]) - VAR - 334174, 390067, 743546, 744576 - PTO CLUTCH, CONTROL, W/O CAB (18) - CLUTCH

1

5172487

YOKE,M16 x 1.5

2шт.

2

87345759

BALL BEARING,50mm ID x 90.5mm OD x 22mm W

1шт.

3

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

4

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

1шт.

5

5191807

BEARING CARRIER,Clutch

1шт.

6

5171609

BEARING CARRIER,Clutch

1шт.

7

87345145

SLEEVE

1шт.

8

4968813

BOLT,Hex, M16 x 1.5 x 32mm

2шт.

9

14610370

LOCK PIN,M10 x 50, Slotted

1шт.

10

5171380

SPRING,Extension, 35mm OD x 53mm L

1шт.

11

44011615

SPRING,15mm, Free Length

4шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

13

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

14

84284421

PTO

1шт.

15

84296108

BRACKET

1шт.

16

84360843

BRACKET

1шт.

17

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

2шт.

18

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

2шт.

19

84326294

LEVER

1шт.

20

84326300

LEVER

1шт.

21

15231624

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

22

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

23

10791414

THIN NUT,M16 x 1.5

M16 x 1.5mm

2шт.

24

28996550

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

25

11061976

SNAP RING,M80, Int

1шт.

26

16043721

SCREW,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

2шт.
