Запчасти Case IH FARMALL 75C (18.100.AQ[01]) - VAR - 333814, 392808, 743565, 743566 - PTO CLUTCH, FLEXIBLE CONTROL, CAB (SHUTTLE) (18) - CLUTCH

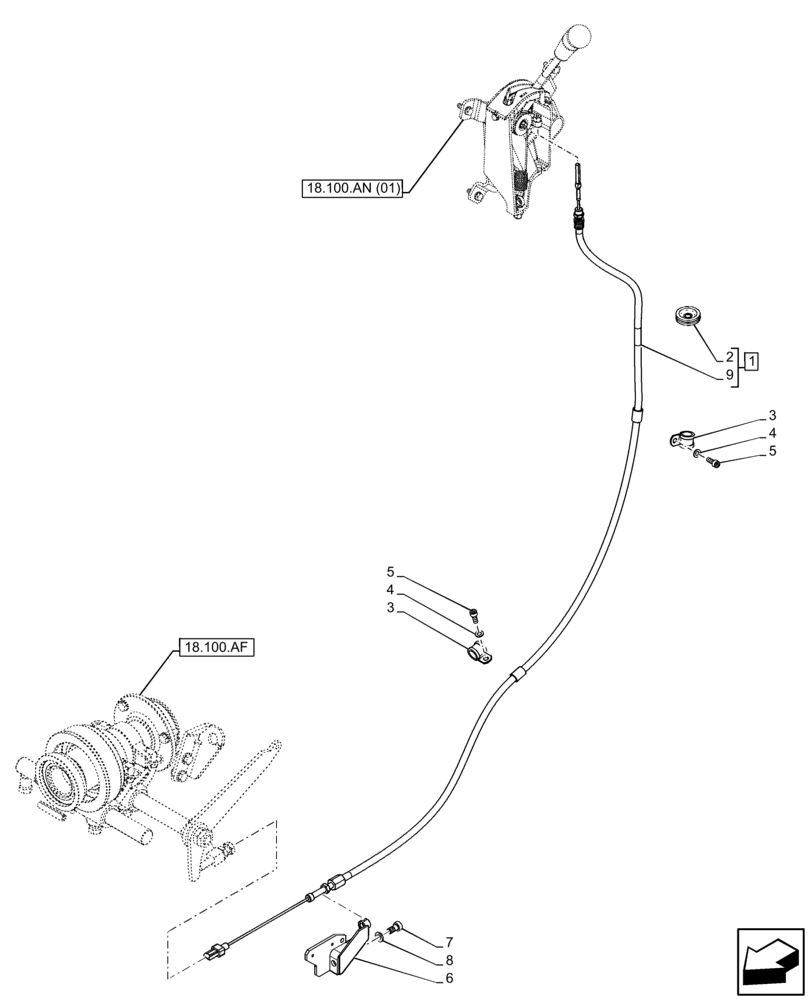

Схема запчастей Case IH FARMALL 75C - (18.100.AQ[01]) - VAR - 333814, 392808, 743565, 743566 - PTO CLUTCH, FLEXIBLE CONTROL, CAB (SHUTTLE) (18) - CLUTCH
4
1
7
6
2
4
8
3
3
18.100.af
5
5
18.100.an (01)
9

Артикул

Название

Примечание

Количество

1

84397494

FLEXIBLE CONTROL

ASSY, Incl 2, 9

1шт.

2

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

3

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

14305231

HEX SOC SCREW,M6 x 16mm, Cl 10.9, Full Thd

2шт.

6

84397384

SUPPORT

1шт.

7

13028330

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

8

10516674

LOCK WASHER,M8

1шт.

9

NSS

NOT SOLD SEPARAT

Cable, Incl in 1

1шт.

Выбрано товаров: 9
