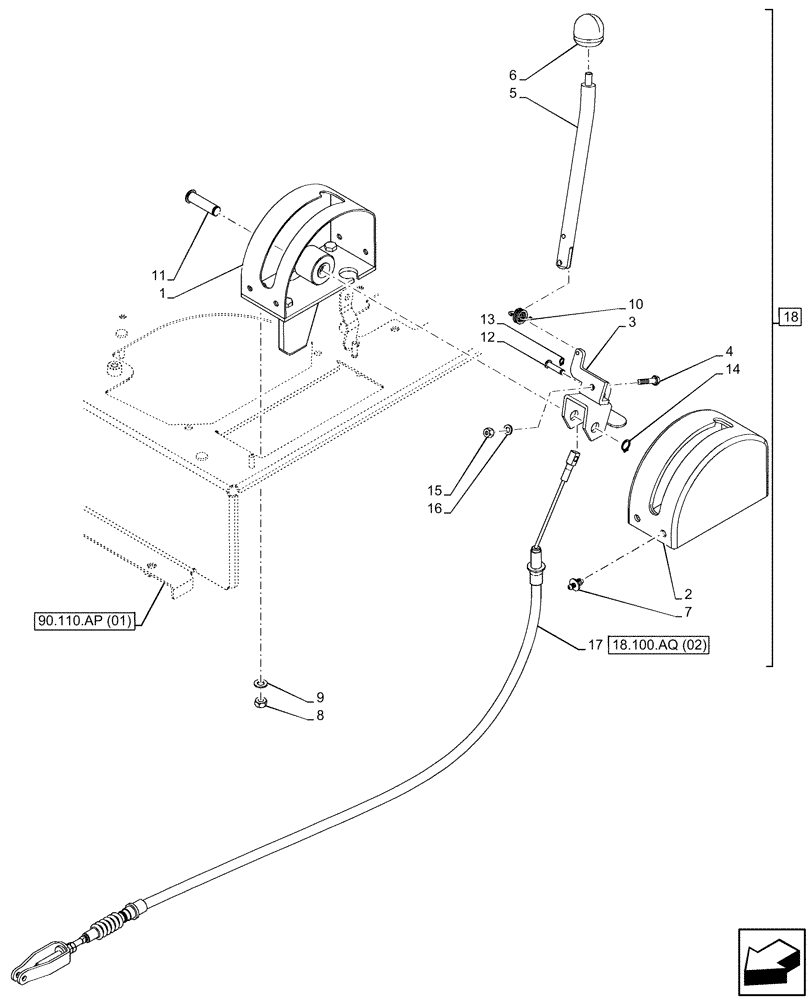

Запчасти Case IH FARMALL 75C (18.100.AN[02]) - VAR - 333814, 392808, 743565, 743566 - PTO CLUTCH, CONTROL LEVER, W/O CAB (SHUTTLE) (18) - CLUTCH

1

84291917

SUPPORT

1шт.

2

5098019

COVER

1шт.

3

84336174

SUPPORT

1шт.

4

10902811

BOLT,M6 x 30, 5.8

1шт.

5

87611329

LEVER

PTO Engagement/Disengagement

1шт.

6

5171717

KNOB

Yellow

1шт.

7

5098024

RIVET,6mm OD x 11mm L

6mm

4шт.

8

16100814

NUT,M8, Cl 8, DAC

3шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

10

5098823

SPRING,Extension, 18mm OD x 30mm L

1шт.

11

5098020

PTO SHAFT,11.98mm OD x 46.5mm L

12mm x 46.7mm

1шт.

12

5098021

PIN,6mm OD x 24.6mm L

6mm x 24.6mm

1шт.

13

86507012

SNAP RING,M6, Ext

1шт.

14

11066076

SNAP RING,M12, Ext

1шт.

15

12574211

NUT,M6 x 1, Cl 8

1шт.

16

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

17

84326372

FLEXIBLE CONTROL

1шт.

18

84319750

LEVER

ASSY, Incl 1 - 7, 10 - 17

1шт.
