Запчасти Case IH FARMALL 75C (18.100.AN[01]) - VAR - 333814, 392808, 743565, 743566 - PTO CLUTCH, CONTROL LEVER, CAB (SHUTTLE) (18) - CLUTCH

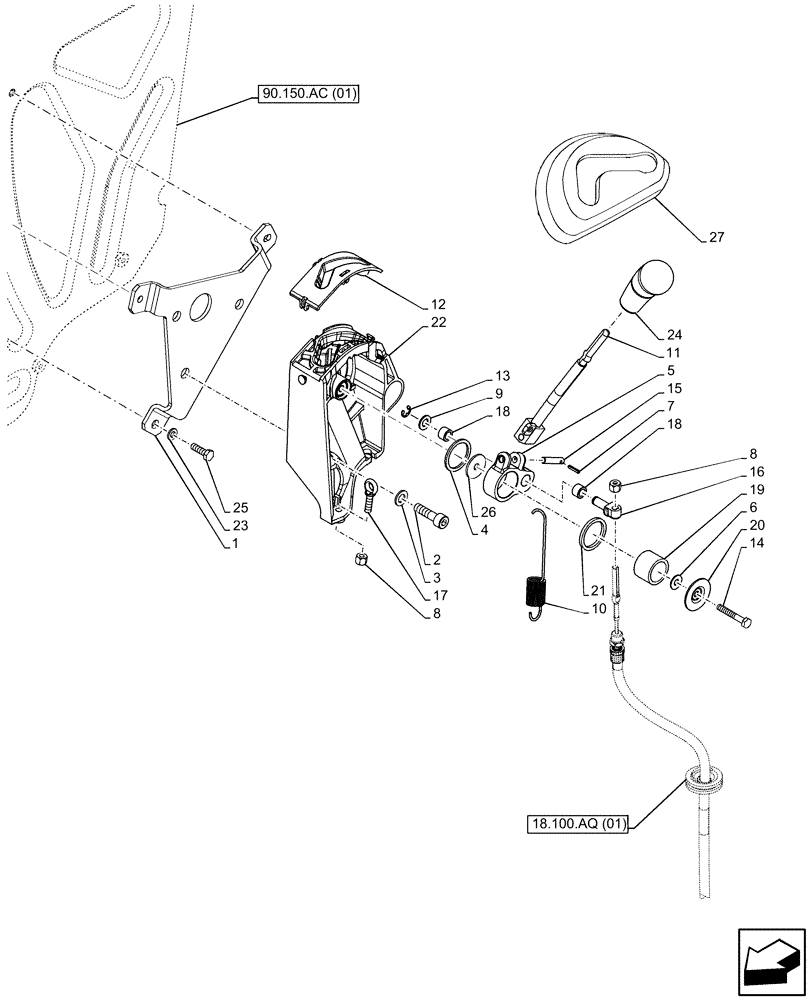

Схема запчастей Case IH FARMALL 75C - (18.100.AN[01]) - VAR - 333814, 392808, 743565, 743566 - PTO CLUTCH, CONTROL LEVER, CAB (SHUTTLE) (18) - CLUTCH
10
22
27
25
26
6
18.100.aq (01)
14
12
8
18
1
20
19
21
24
18
23
17
5
13
3
8
15
2
7
4
11
90.150.ac (01)
16
9

Артикул

Название

Примечание

Количество

1

84300283

BRACKET

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

3шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

5

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

7

14159674

ROLL PIN,2.5mm OD x 14mm L

2.5mm x 14mm

1шт.

8

12574221

NUT,M6 x 1, Cl 10

2шт.

9

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

10

84206711

SPRING,Extension, 18mm OD x 110mm L

1шт.

11

84284607

CONTROL LEVER

PTO Engagement/Disengagement

1шт.

12

87325900

SECTOR

1шт.

13

11087874

CIRCLIP,M6

1шт.

14

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

47131077

PIN,8mm

1шт.

17

5115351

HOOK,M6 x 1

1шт.

18

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

2шт.

19

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

20

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

21

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

22

47388442

SUPPORT

1шт.

23

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

24

5194972

KNOB

Yellow

1шт.

25

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

26

11194479

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD

1шт.

27

84397042

PLASTIC PLUG

1шт.

Выбрано товаров: 27
