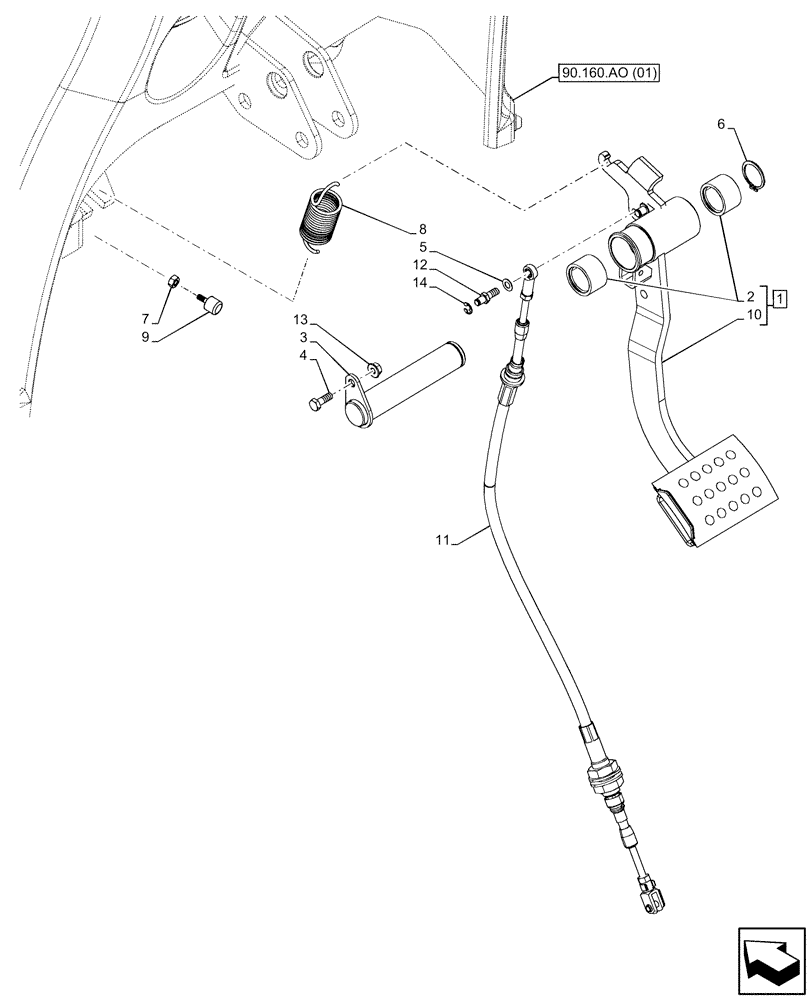

Запчасти Case IH FARMALL 75C (18.100.AF[02]) - VAR - 330274, 330276, 334175, 334176 - CLUTCH, PEDAL, FLEXIBLE CONTROL (POWER SHUTTLE) (18) - CLUTCH

1

84584926

PEDAL

ASSY, Incl 2, 10

1шт.

2

84394202

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 20mm W

25mm ID x 35mm OD x 20mm H

2шт.

3

84591943

ROD

1шт.

4

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

11067371

CIRCLIP,M25

1шт.

7

15896414

NUT,M5, Cl 8

1шт.

8

84545385

SPRING,Extension, 40mm OD, 89mm L

1шт.

9

5115768

STOP

1шт.

10

NSS

NOT SOLD SEPARAT

Pedal, Incl in 1

1шт.

11

47382125

FLEXIBLE CABLE

693mm

1шт.

12

84339638

PIN,6mm OD x 26mm L

1шт.

13

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

14

800-316

CIRCLIP,M6

1шт.
