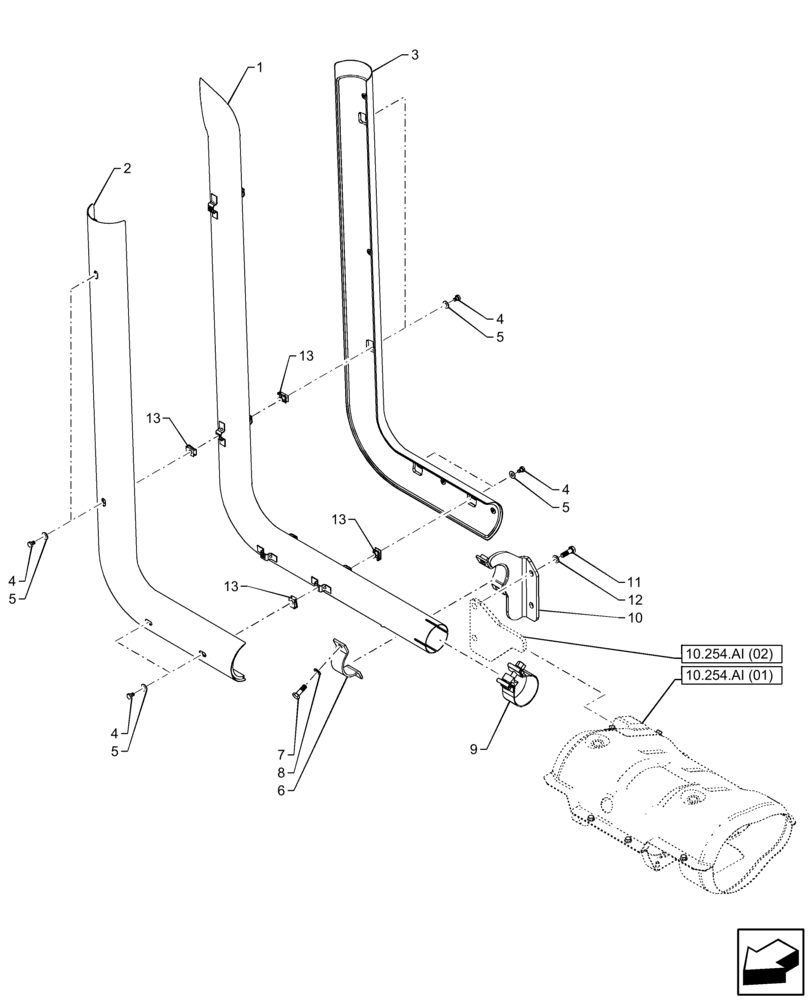

Запчасти Case IH FARMALL 75C (10.254.AD[03]) - VAR - 331466, 743545 - EXHAUST SYSTEM PIPE, PILLAR, CAB (10) - ENGINE

1

84474790

UNLOADING TUBE

1шт.

2

84342031

HEAT SHIELD

Front

1шт.

3

84341828

HEAT SHIELD

Rear

1шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

8шт.

5

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

8шт.

6

47128424

COLLAR

1шт.

7

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

84499086

CLAMP,64.9mm

1шт.

10

47451596

BRACKET

1шт.

11

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

11193877

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD

2шт.

13

14189071

SPRING NUT,M6

M6

8шт.
