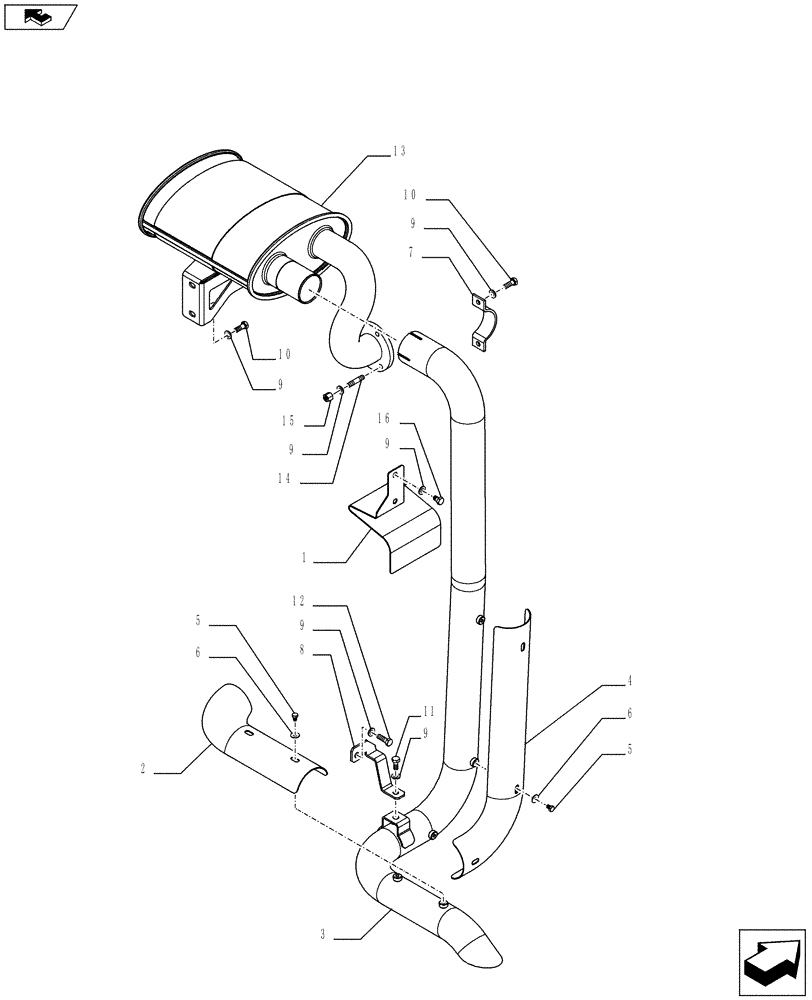

Запчасти Case IH FARMALL 75C (10.254.0303) - HORIZONTAL EXHAUST WITH GUARD SHIELD (VAR.338111-330150-331150 / 743544) (10) - ENGINE

1

84122222

GUARD

1шт.

2

84299522

HEAT SHIELD

1шт.

3

84265837

EXHAUST SYSTEM PIPE

1шт.

4

84255888

HEAT SHIELD

1шт.

5

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

5шт.

6

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

5шт.

7

47128424

COLLAR

1шт.

8

84371456

BRACKET

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

11шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

84243091

MUFFLER

1шт.

14

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

3шт.

15

5118186

FLANGE NUT

M8

3шт.

16

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.
