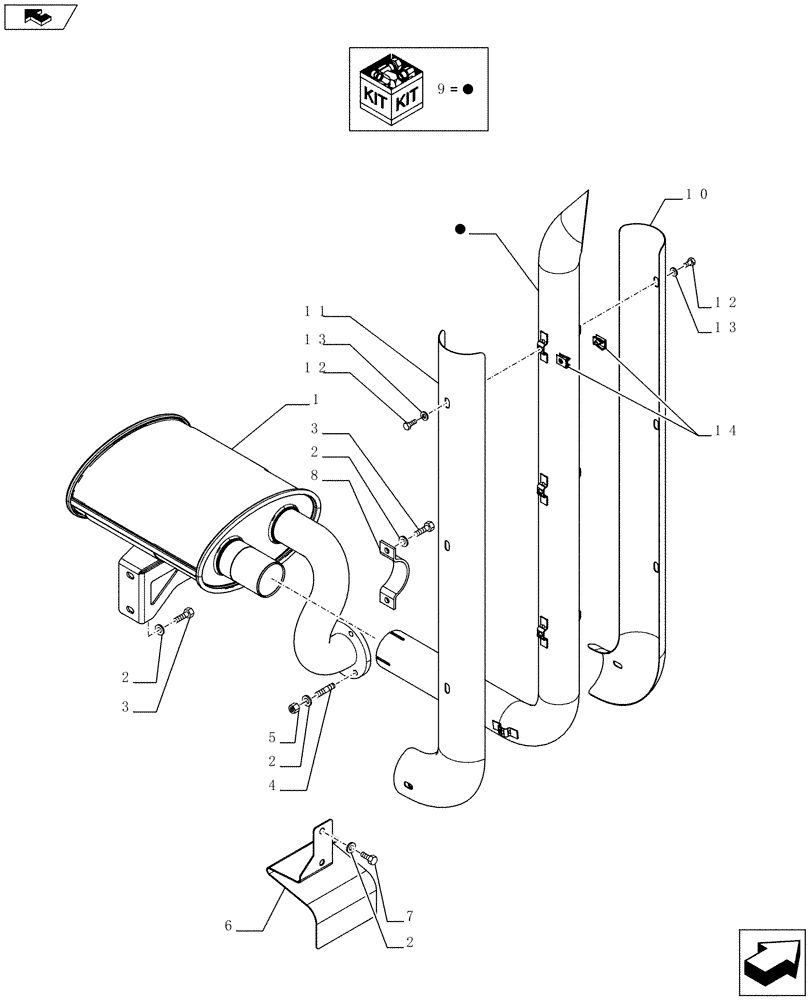

Запчасти Case IH FARMALL 75C (10.254.0302) - VERTICAL EXHAUST WITH HEAT SHIELD AND MUFFLER - L/CAB (10) - ENGINE

1

84243091

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

9шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

5шт.

4

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

3шт.

5

5118186

FLANGE NUT

M8

3шт.

6

84122222

GUARD

1шт.

7

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

8

47128424

COLLAR

1шт.

9

84276224

EXHAUST SYSTEM PIPE

ASSY

1шт.

10

84228899

HEAT SHIELD

1шт.

11

84255892

HEAT SHIELD

1шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

8шт.

13

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

8шт.

14

14189071

SPRING NUT,M6

NUT

8шт.
