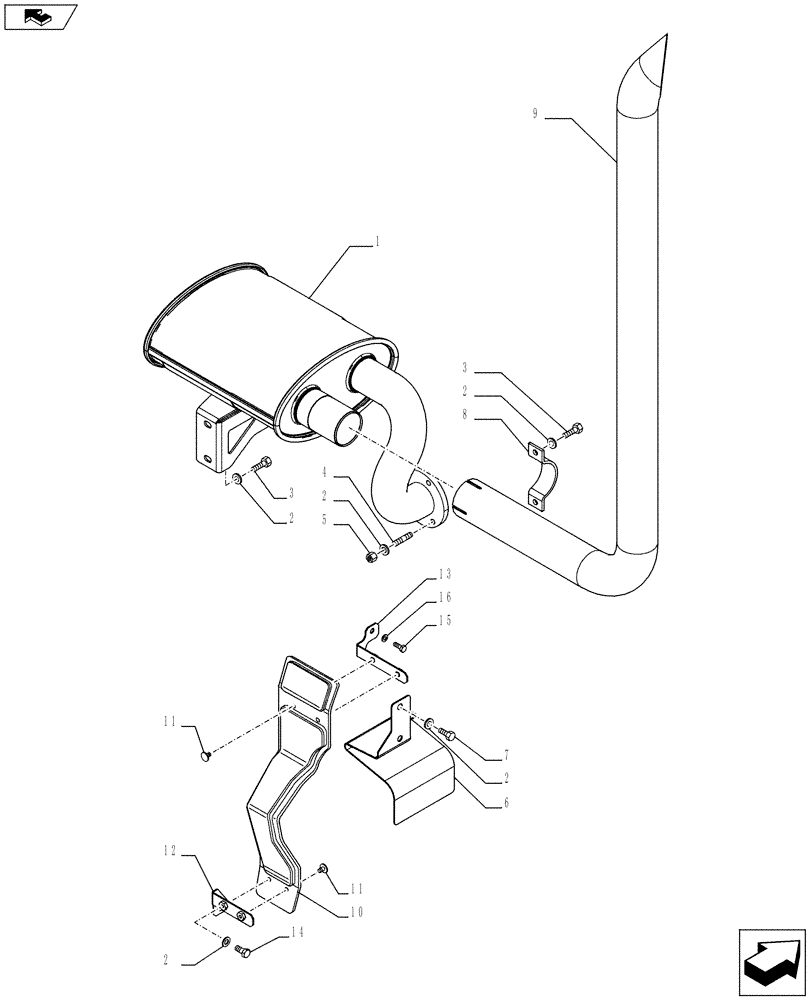

Запчасти Case IH FARMALL 75C (10.254.0301) - VERTICAL EXHAUST WITHOUT HEAT SHIELD AND MUFFLER - L/CAB (10) - ENGINE

1

84243091

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

5шт.

4

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

3шт.

5

5118186

FLANGE NUT

M8

3шт.

6

84122222

GUARD

1шт.

7

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

8

47128424

COLLAR

1шт.

9

84278962

EXHAUST SYSTEM PIPE

1шт.

10

84467055

HEAT SHIELD

1шт.

11

14778714

SCREW,Cross Rec Cheese Hd, M6 x 10mm, Cl 5.8

4шт.

12

84403681

BRACKET

1шт.

13

84398981

BRACKET

1шт.

14

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

15

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
