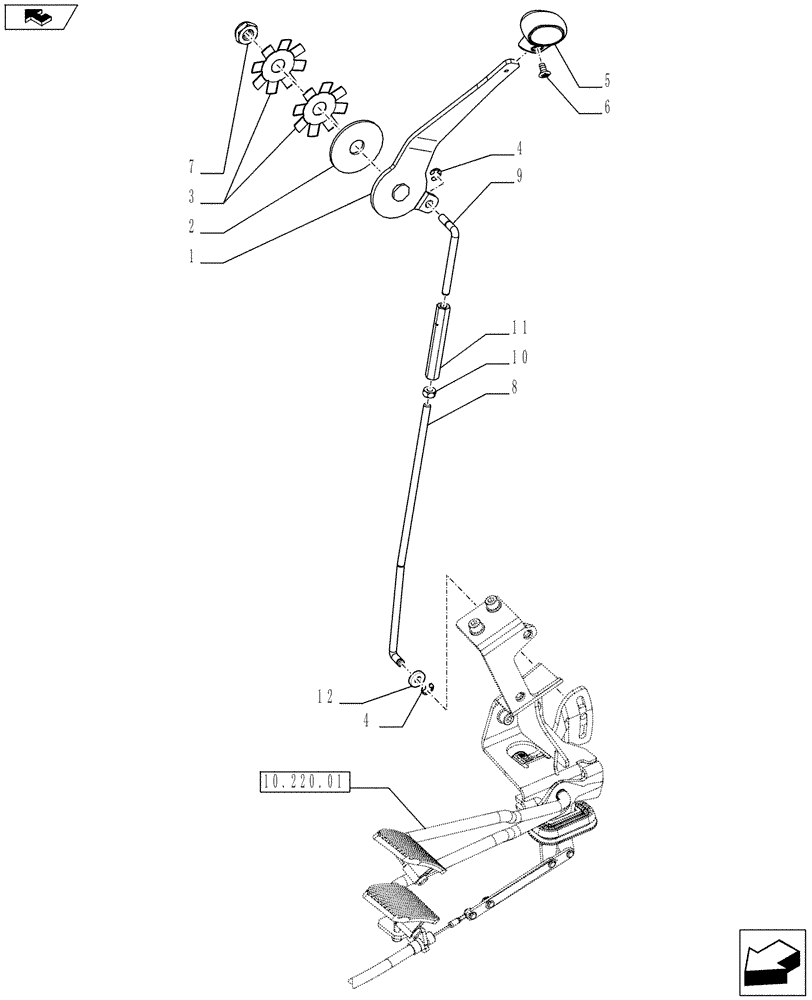

Запчасти Case IH FARMALL 75C (10.220.02) - THROTTLE CONTROL LINKAGE - HAND THROTTLE ASSEMBLY - W/CAB (10) - ENGINE

1

84340136

CONTROL LEVER

1шт.

2

83924272

FRICTION WASHER,14mm ID x 50mm OD x 3mm Thk

1шт.

3

87347331

WASHER,12.83mm ID x 52.3mm OD x 0.89mm Thk

2шт.

4

11087776

CIRCLIP,Ext., M6, BLO

2шт.

5

82034589

KNOB

1шт.

6

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

7

16105111

LOCK NUT,M12 x 1.25, Cl 8

1шт.

8

84309189

THREADED TIE-ROD

1шт.

9

84309184

THREADED TIE-ROD

1шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

11

10091011

TURNBUCKLE,Adjusting, M6 x 1 x 70mm

1шт.

12

84401275

RUBBER WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.
