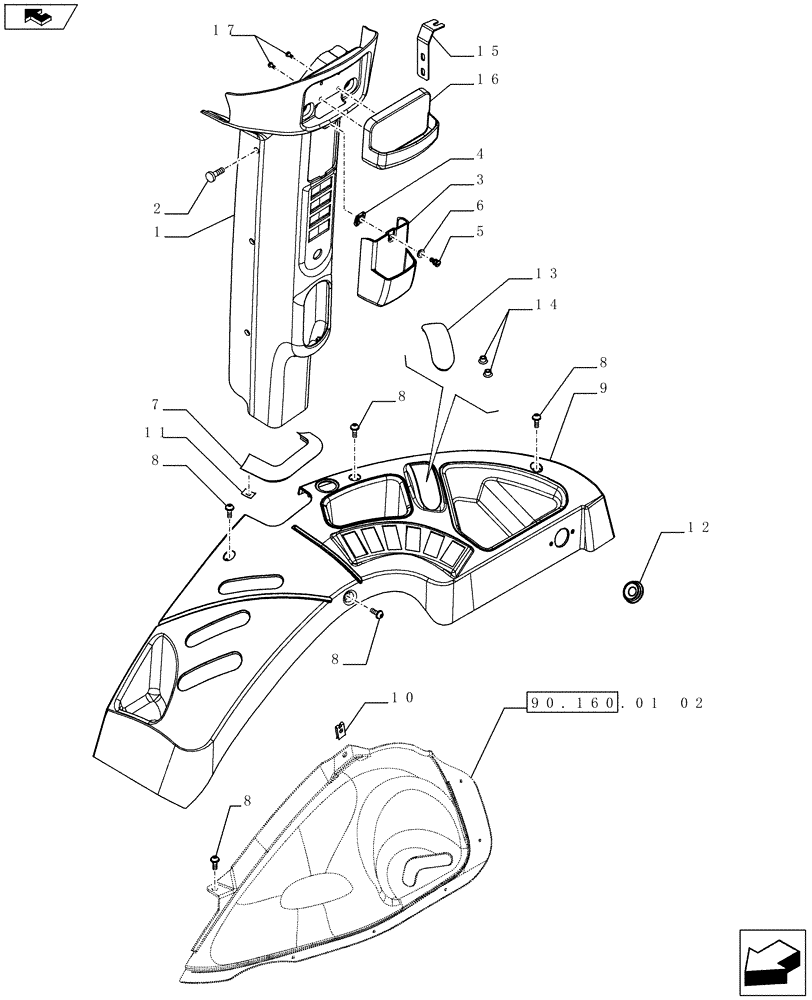

Запчасти Case IH FARMALL 75C (90.160.01[01]) - CONTROLS COVER - RH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84315058

TRIM

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

1шт.

3

84315044

SUPPORT

1шт.

4

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

5

84354393

PIN,18.8mm L

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

7

84345365

RUBBER SEAL,121.9mm L

1шт.

8

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

5шт.

9

84315035

TRIM PANEL

1шт.

10

14371774

SPRING NUT,M6, U, 12mm long

1шт.

11

14183474

PUSH-ON NUT,M4, Push

5шт.

12

81862738

PLUG,M38 x 28 x 5mm

1шт.

13

84354389

PLUG

1шт.

14

82003283

PLUG,10.5mm OD

2шт.

15

84311409

BRACKET

1шт.

16

84347910

COVER ASSY

1шт.

17

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.
