(90.152.0101[03A]) - CAB WITH OPENABLE SIDLE GLASSES WITH WHITE ROOF - CAB ROOF AND FRAME - NAR - (VAR.337606 / 743573) - BEGIN YR 10-OCT-2012

Запчасти Case IH FARMALL 75C (90.152.0101[03A]) - CAB WITH OPENABLE SIDLE GLASSES WITH WHITE ROOF - CAB ROOF AND FRAME - NAR - (VAR.337606 / 743573) - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

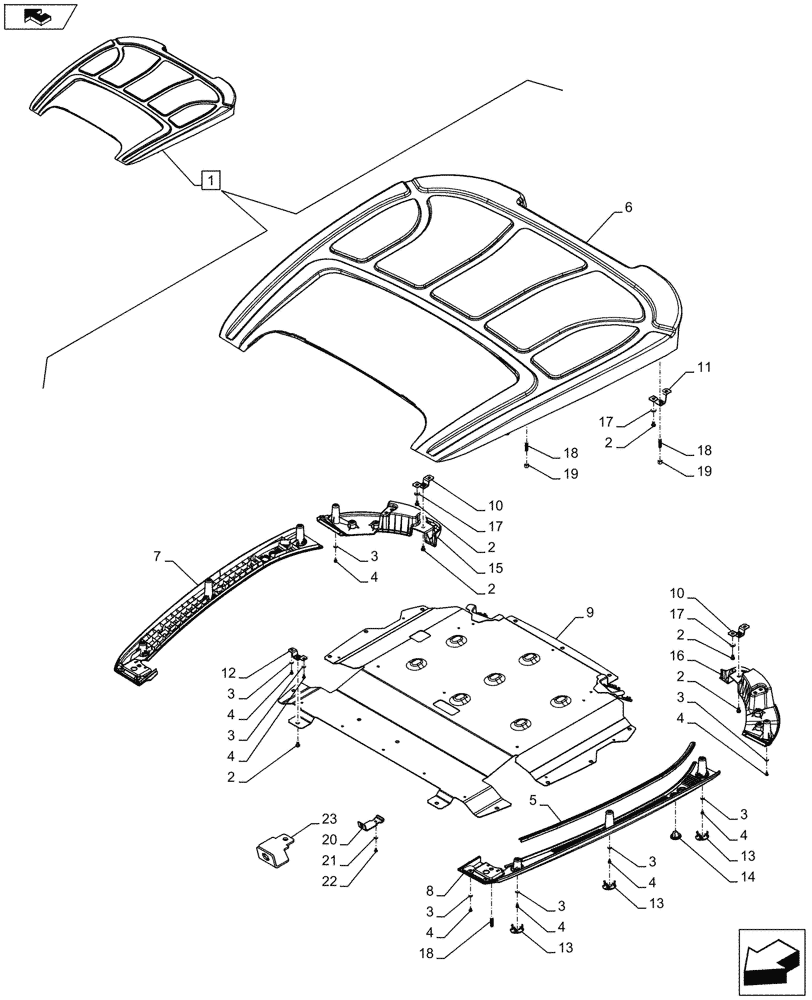

Схема запчастей Case IH FARMALL 75C - (90.152.0101[03A]) - CAB WITH OPENABLE SIDLE GLASSES WITH WHITE ROOF - CAB ROOF AND FRAME - NAR - (VAR.337606 / 743573) - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
4
2
3
2
17
6
4
2
4
13
18
17
4
23
8
18
3
2
4
20
21
10
16
3
7
3
3
1
13
home
19
2
10
3
4
2
4
22
5
9
13
18
15
12
4
19
3
11
17
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47411601

ROOF

ASSY, Contains Ref. 3, 4, 6, 9, 12

1шт.

2

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

12шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

30шт.

QTY 18 Incl in PN 47411601

1шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

30шт.

QTY 18 Incl in PN 47411601

1шт.

5

84275319

RUBBER SEAL,897mm L

2шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

47410967

PANEL

RH

1шт.

8

47410992

PANEL

LH

1шт.

9

84310702

STEEL PLATE

1шт.

10

84317193

BRACKET

2шт.

11

84317195

BRACKET

2шт.

12

84310794

BRACKET

2шт.

13

84317182

PLUG,44mm OD, Black

6шт.

14

84317184

PLUG,35mm OD, Black

4шт.

15

84317188

PANEL

RH

1шт.

16

84317189

PANEL

LH

1шт.

17

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

18

13516924

STUD,M8 x 34mm L, Cl. 8.8

6шт.

19

16104114

LOCK NUT,M8, Cl 8

4шт.

20

47398004

BRACKET

, Years: 06-DEC-12-30-SEP-14

1шт.

21

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

, Start Year: 06-DEC-12

1шт.

22

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

, Start Year: 06-DEC-12

1шт.

23

47613002

BRACKET

, Start Year: 01-OCT-14

1шт.
