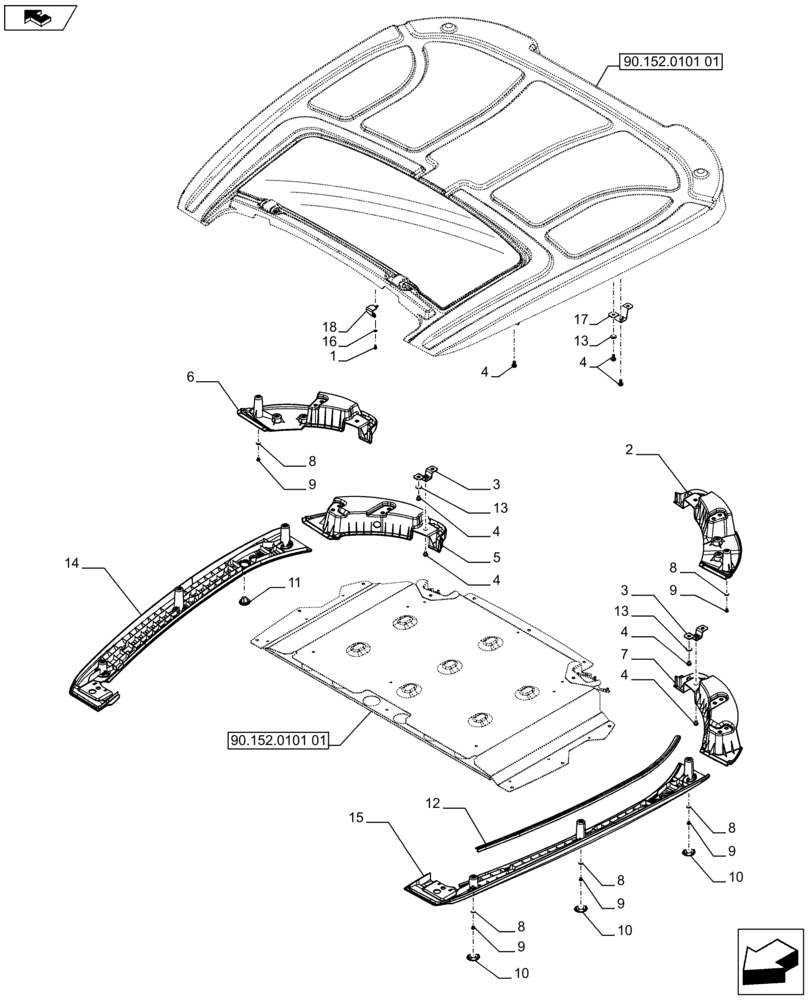

Запчасти Case IH FARMALL 75C (90.152.0101[02]) - CAB WITH HIGH VISIBILITY PANEL - FRAME (VAR.333606 / 743574; VAR.336606-339606) - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

2

84317189

PANEL

LH

1шт.

NAR Market, 75C Model Only

1шт.

3

84317193

BRACKET

2шт.

4

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

14шт.

5

84317681

PANEL

RH

1шт.

ISO Market Models Only

1шт.

6

84317188

PANEL

RH

1шт.

NAR Market, 75C Model Only

1шт.

7

84317680

PANEL

LH

1шт.

ISO Market Models Only

1шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

8шт.

10

84317182

PLUG,44mm OD, Black

6шт.

11

84317184

PLUG,35mm OD, Black

4шт.

12

84275319

RUBBER SEAL,897mm L

2шт.

13

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

14

84317190

PANEL

RH

1шт.

15

84317191

PANEL

LH

1шт.

16

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

17

84317195

BRACKET

2шт.

18

84337732

BRACKET

1шт.
