Запчасти Case IH FARMALL 75C (90.152.0101[01A]) - CAB WITH HIGH VISIBILITY PANEL - ROOF (VAR.333606 / 743574; VAR.336606-339606) - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

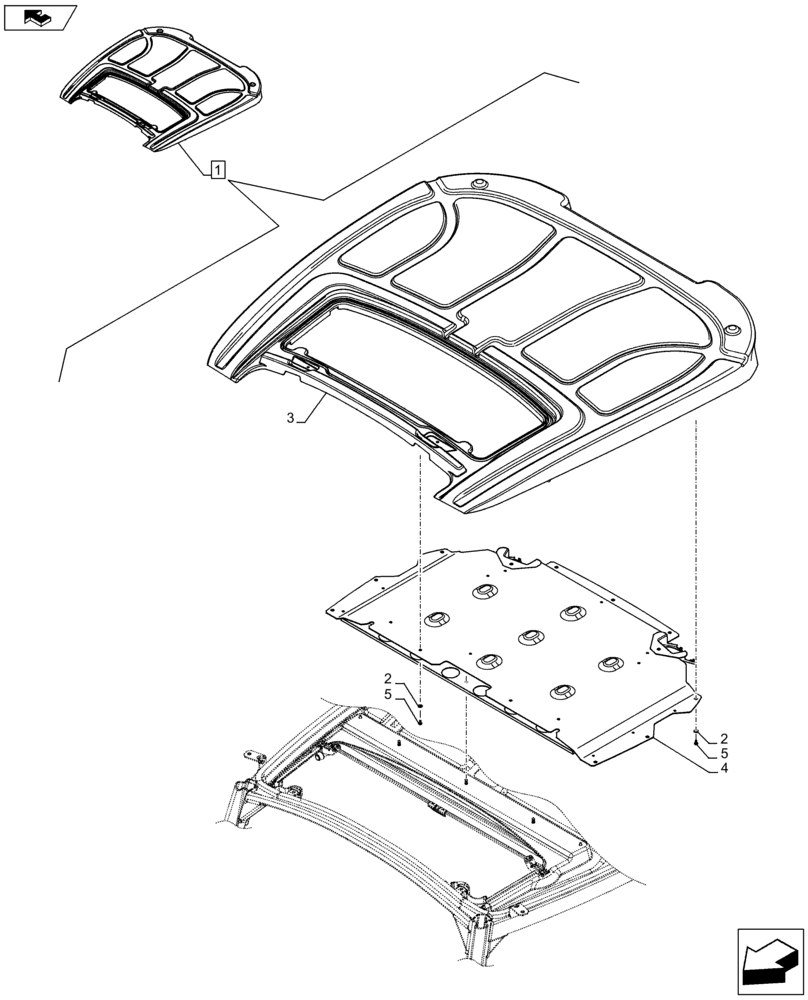

Схема запчастей Case IH FARMALL 75C - (90.152.0101[01A]) - CAB WITH HIGH VISIBILITY PANEL - ROOF (VAR.333606 / 743574; VAR.336606-339606) - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
2
1
home
5
4
5
3

Артикул

Название

Примечание

Количество

1

47409995

ROOF

ASSY, Contains Ref. 2-5, Years: -05-DEC-12

1шт.

NAR Market, 75C Model Only

1шт.

1

47411559

ROOF

ASSY, Contains Ref. 2-5, Years: -05-DEC-12

1шт.

ISO Market Models Only

1шт.

1

47449214

ROOF

ASSY, Contains Ref. 2-5, Start Year: 06-DEC-12

1шт.

NAR Market, 75C Model Only

1шт.

1

47449732

ROOF

ASSY, Contains Ref. 2-5, Start Year: 06-DEC-12

1шт.

ISO Market Models Only

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

11шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

47411515

STEEL PLATE

1шт.

5

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

11шт.

Выбрано товаров: 12
