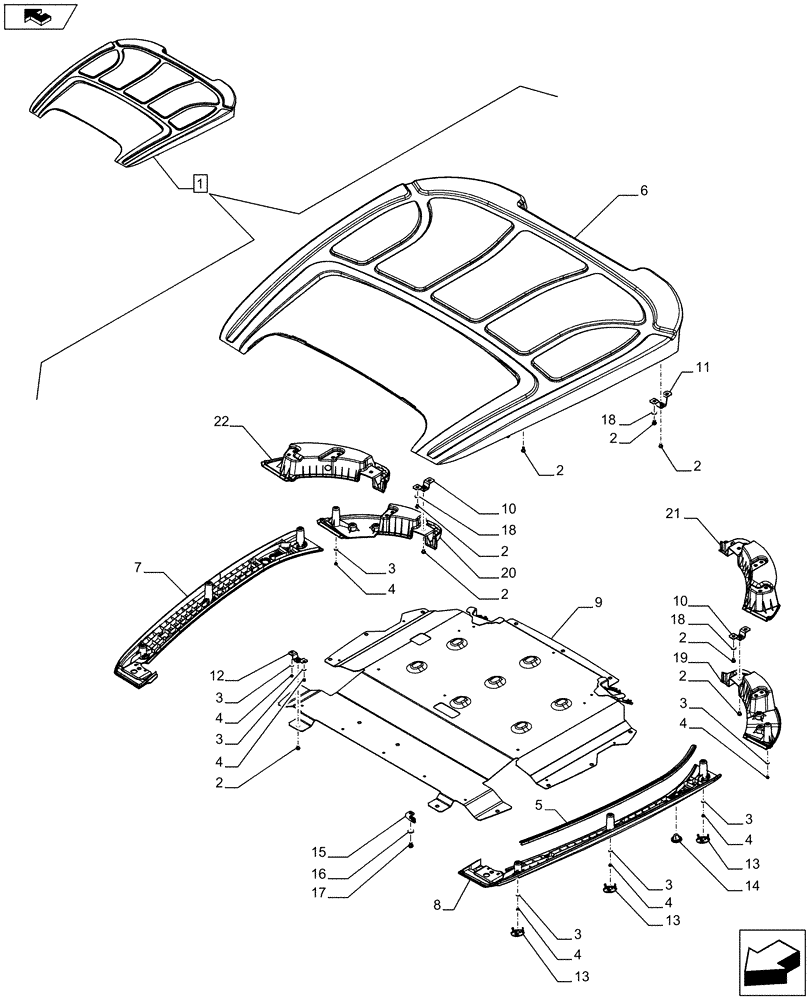

Запчасти Case IH FARMALL 75C (90.152.01[01]) - CAB ROOF AND FRAME - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84576286

ROOF

ASSY, Contains Ref. 2 - 4, 6, 9, 12

1шт.

NAR Market, 75C Model Only

1шт.

1

84576267

ROOF

ASSY, Contains Ref. 2 - 4, 6, 9, 12

1шт.

ISO Market Models Only

1шт.

2

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

16шт.

Qty 2 Incl in PN 84576267 and PN 84576286

1шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

26шт.

Qty 18 Incl in PN 84576267 and PN 84576286

1шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

26шт.

Qty 18 Incl in PN 84576267 and PN 84576286

1шт.

5

84275319

RUBBER SEAL,897mm L

2шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

84317190

PANEL

RH

1шт.

8

84317191

PANEL

LH

1шт.

9

84310702

STEEL PLATE

1шт.

10

84317193

BRACKET

2шт.

11

84317195

BRACKET

2шт.

12

84310794

BRACKET

2шт.

13

84317182

PLUG,44mm OD, Black

6шт.

14

84317184

PLUG,35mm OD, Black

4шт.

15

84337732

BRACKET

1шт.

16

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

17

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

18

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

19

84317189

PANEL

LH

1шт.

NAR Market, 75C Model Only

1шт.

20

84317188

PANEL

RH

1шт.

NAR Market, 75C Model Only

1шт.

21

84317680

PANEL

LH

1шт.

ISO Market Models Only

1шт.

22

84317681

PANEL

RH

1шт.

ISO Market Models Only

1шт.
