(90.124.0101[08]) - DRIVER SEAT, W/ CAB (VAR.332850) - BEGINE YR 26-JUL-2013

Запчасти Case IH FARMALL 75C (90.124.0101[08]) - DRIVER SEAT, W/ CAB (VAR.332850) - BEGINE YR 26-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

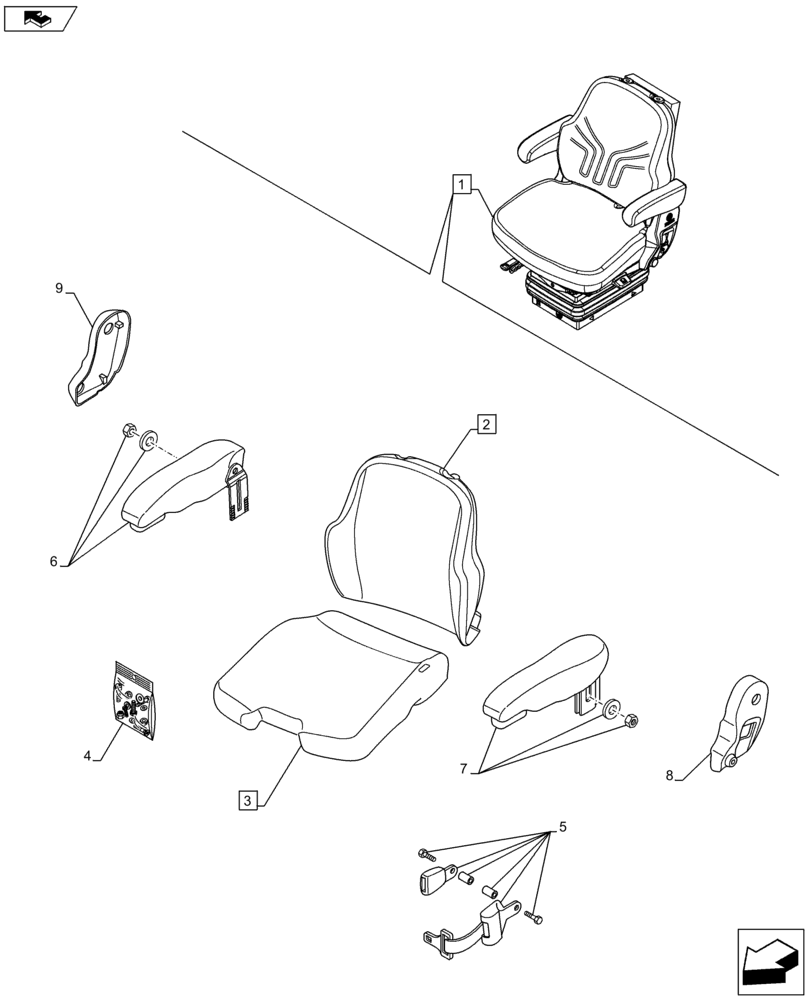

Схема запчастей Case IH FARMALL 75C - (90.124.0101[08]) - DRIVER SEAT, W/ CAB (VAR.332850) - BEGINE YR 26-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
9
5
6
3
8
home
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

1шт.

2

84172430

SEAT BACK

ASSY, Incl 4

1шт.

3

84281117

SEAT CUSHION

ASSY, Incl 4

1шт.

4

84191200

SET OF PARTS

SMALL PARTS CUSHION

1шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

84487894

ARMREST

1шт.

7

84486613

ARMREST

1шт.

8

71491405

COVER

1шт.

9

84171458

COVER

1шт.

Выбрано товаров: 9
