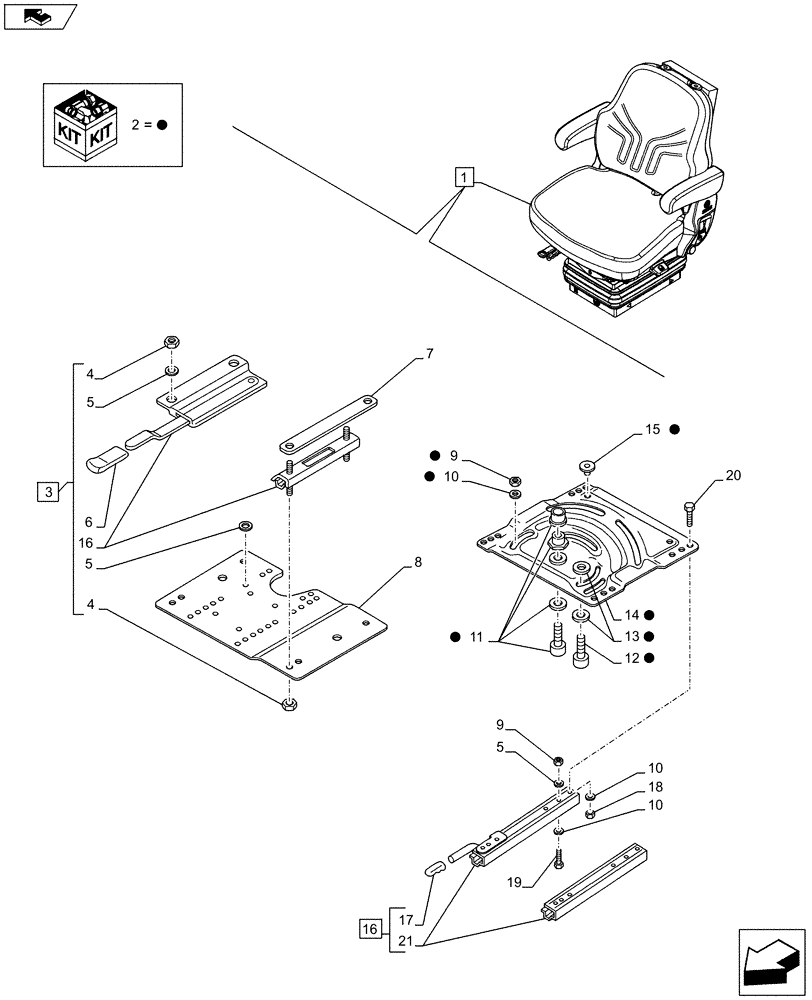

Запчасти Case IH FARMALL 75C (90.124.0101[04]) - DRIVER SEAT, W/ CAB (VAR.332850) - END YR 25-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84347497

DRIVER SEAT

ASSY, Incl 2 - 21

1шт.

2

1-34-751-712

SET OF PARTS

ASSY, Incl 9 - 15

1шт.

3

82034927

ISOLATOR

ASSY, Incl 4 - 6, 16

1шт.

4

82034883

NUT,CL 8.8

4шт.

5

9960692

WASHER

2шт.

6

82034956

HANDLE

1шт.

7

82034938

SECURING STRAP

1шт.

8

82034965

SEAT BACK

1шт.

9

82034880

NUT,M8

4шт.

10

82034881

WASHER,8.4mm ID

4шт.

11

1-34-751-945

SUPPORT

1шт.

12

84145498

BOLT

4шт.

13

82034886

RIVET

8шт.

14

375067A1

SET OF PARTS

Swivel Plate

1шт.

15

82034862

DISC

2шт.

16

87331929

SET OF PARTS

Rails, ASSY, Incl 17, 21

1шт.

17

9971715

HANDLE

1шт.

18

47124497

NUT,M8

4шт.

19

82034893

SCREW,M8 x 1.25 x 1.25mm

4шт.

20

84171408

SCREW

4шт.

21

NSS

NOT SOLD SEPARAT

Rails, Incl in 16

1шт.
