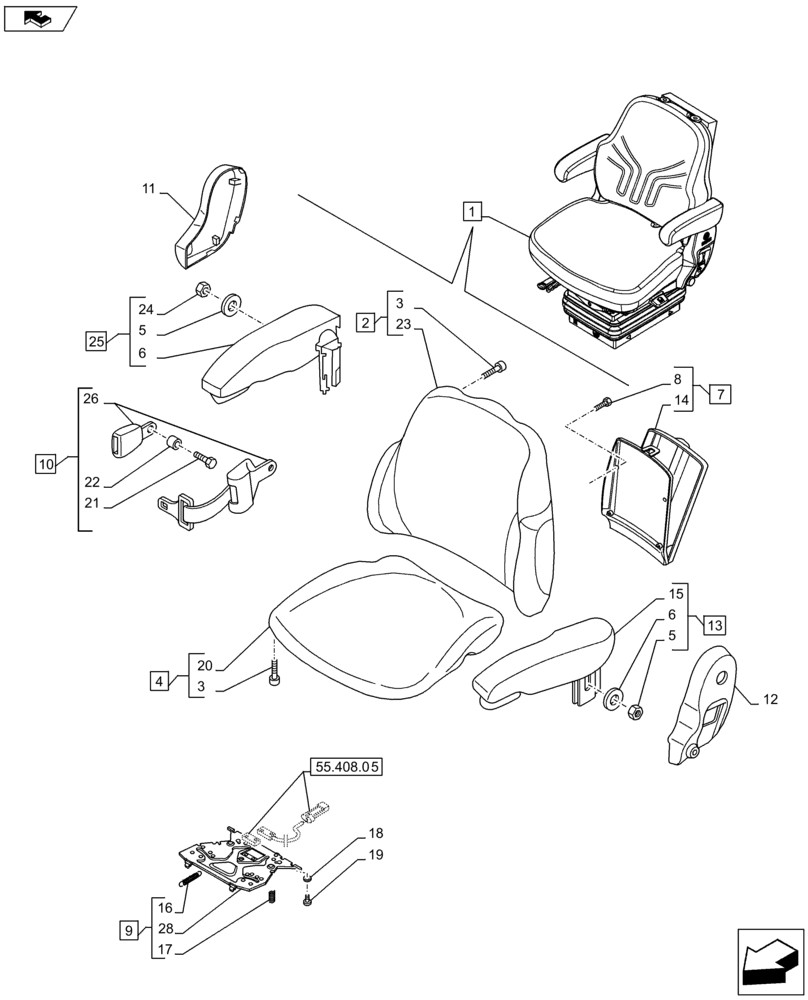

Запчасти Case IH FARMALL 75C (90.124.0101[02]) - DRIVER SEAT, W/ CAB (VAR.332850) - END YR 25-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84347497

DRIVER SEAT

ASSY, Incl 2 - 33

1шт.

Includes Also 55.408.05, 90.124.0101 (03) to 90.124.0101 (07)

1шт.

2

84172430

SEAT BACK

ASSY, Incl 3, 28

1шт.

3

82034997

SCREW,M5 x 25mm

8шт.

4

84281117

SEAT CUSHION

1шт.

5

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

6шт.

6

9960692

WASHER

6шт.

7

87331929

SET OF PARTS

ASSY, Incl 8, 25

1шт.

8

9971715

HANDLE

1шт.

9

47124497

NUT,M8

4шт.

10

NSS

NOT SOLD SEPARAT

Armrest, Incl in 13

1шт.

11

82034881

WASHER,8.4mm ID

8шт.

12

5192699

COVER

1шт.

13

84486613

ARMREST

ASSY, LH, Incl 5, 6, 10

1шт.

14

71491415

UTILITY HOLDER

ASSY, Incl 15, 23

1шт.

15

82034863

SCREW,M4 x 8mm

3шт.

16

82034885

SCREW,7/16" - 20 x 35"

2шт.

17

84171407

BUSHING

2шт.

18

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

19

345780A1

SPRING

1шт.

20

82034924

SPRING

3шт.

21

81826865

BUMPER

2шт.

22

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 4

1шт.

23

NSS

NOT SOLD SEPARAT

Utility Holder, Incl in 4

1шт.

24

84488723

SEAT SUPPORT

ASSY, Incl 19 - 21, 26, 27

1шт.

25

NSS

NOT SOLD SEPARAT

Bracket, Incl in 7

1шт.

26

82034886

RIVET

2шт.

27

NSS

NOT SOLD SEPARAT

Support, Incl in 24

1шт.

28

NSS

NOT SOLD SEPARAT

Backrest Cover, Incl in 2

1шт.

29

5192700

COVER

RH

1шт.

30

84171408

SCREW

1шт.

31

82034893

SCREW,M8 x 1.25 x 1.25mm

1шт.

32

NSS

NOT SOLD SEPARAT

Armrest, Incl in 33

1шт.

33

84487894

ARMREST

ASSY, RH, Incl 5, 6, 32

1шт.
