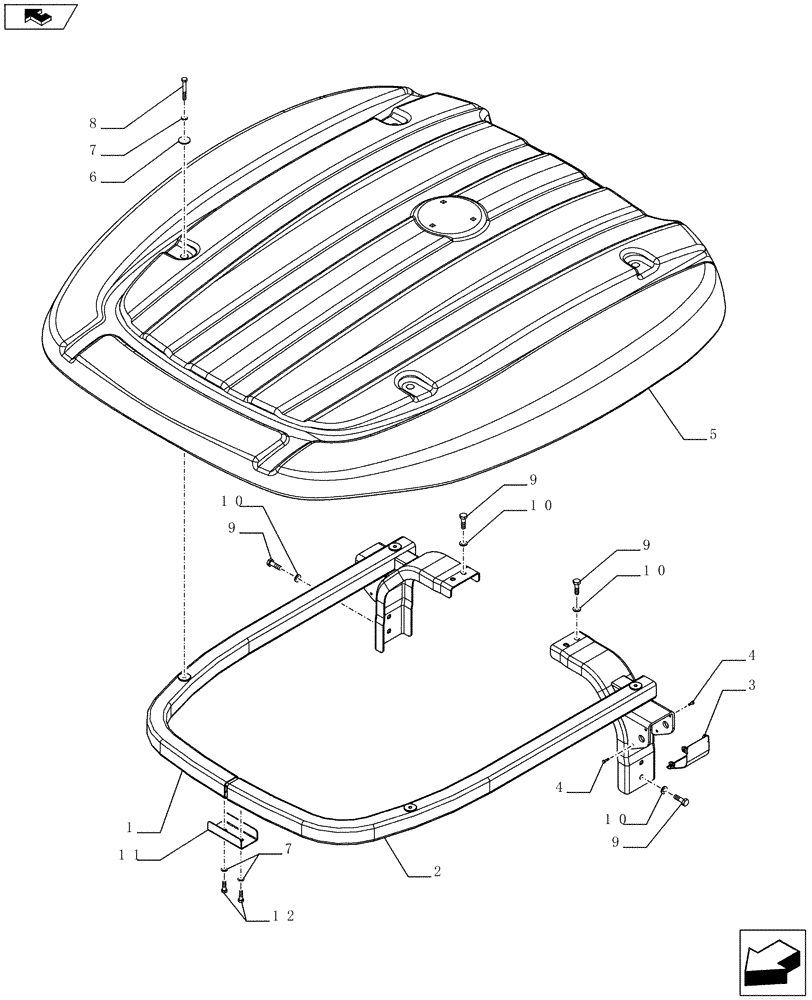

Запчасти Case IH FARMALL 75C (90.114.08) - FOLDING ROPS CANOPY - ISO (VAR.332857) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84356395

BRACKET

RH

1шт.

2

84356451

BRACKET

LH

1шт.

3

84358067

COVER

1шт.

4

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

5

84359625

ROOF

1шт.

6

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

8

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

9

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

11

84356567

BRACKET

1шт.

12

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

2шт.
