Запчасти Case IH FARMALL 75C (90.114.0402[01]) - DYNAMIC FRONT FENDERS (310MM) - FENDERS AND BRACKETS (VAR.338486 / 743533) (90) - PLATFORM, CAB, BODYWORK AND DECALS

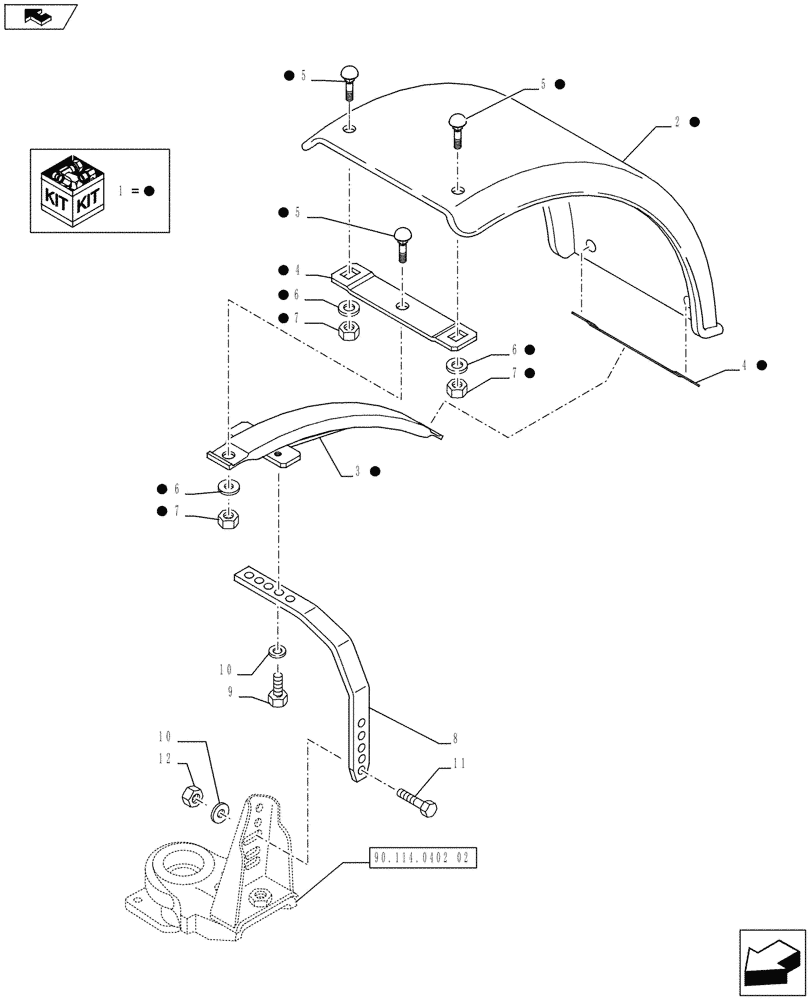

Схема запчастей Case IH FARMALL 75C - (90.114.0402[01]) - DYNAMIC FRONT FENDERS (310MM) - FENDERS AND BRACKETS (VAR.338486 / 743533) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
5
1
1
9
1
10
7
11
6
6
4
8
5
12
1
1
1
1
4
1
1
6
1
1
1
10
1
3
2
7
7
5
1
1
90.114.0402 02

Артикул

Название

Примечание

Количество

1

87484873

FRONT FENDER,355mm

ASSY, Contains Ref. 2-7

2шт.

2

87484889

COVER

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12574521

LOCK NUT,M10 x 1.25, Cl 10

6шт.

8

87473978

SUPPORT

2шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

11

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

12

16105014

LOCK NUT,M12 x 1.25

4шт.

Выбрано товаров: 12
