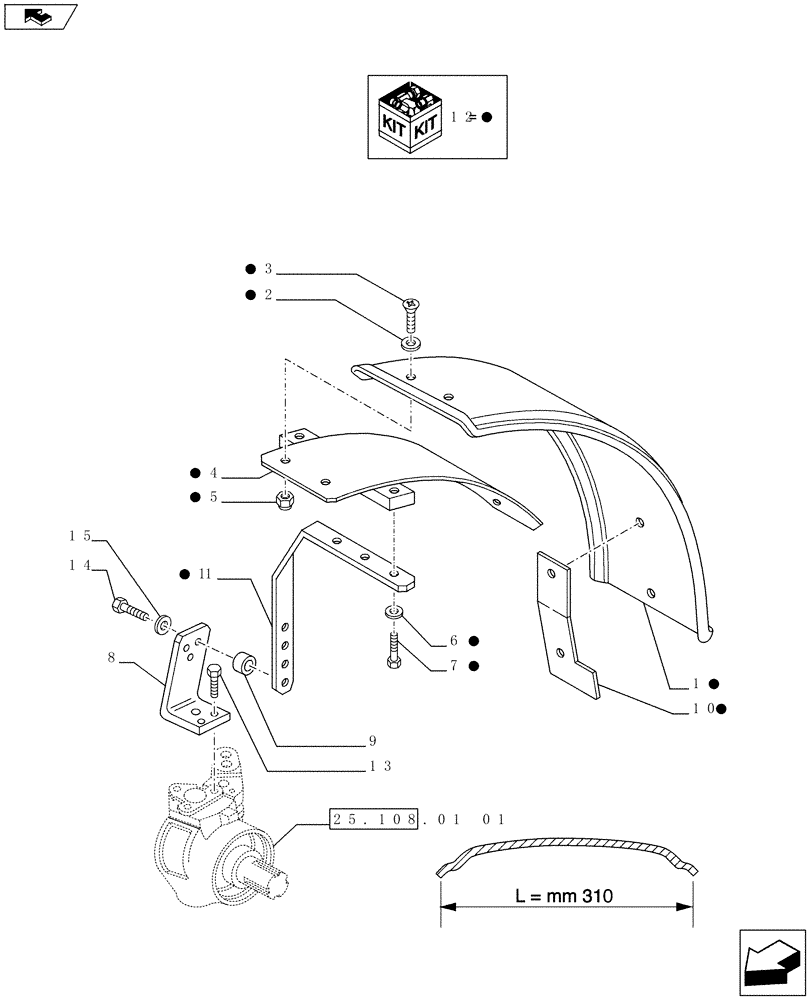

Запчасти Case IH FARMALL 75C (90.114.04) - FRONT FENDER (310MM) - FENDERS AND BRACKETS (VAR.330484) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5137714

COVER ASSY

1шт.

2

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

3

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

3шт.

3

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

1шт.

4

5179697

FRAME

RH

1шт.

4

5179698

FRAME

LH

1шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

3шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

5185292

SUPPORT

2шт.

9

5166193

SPACER,13mm ID x 40mm OD x 28mm L

4шт.

10

5179705

REINFORCEMENT

RH

1шт.

10

5179701

REINFORCEMENT

LH

1шт.

11

5186928

PILLAR

1шт.

12

5186949

FRONT FENDER

ASSY, RH, Contains Ref. 1-7, 10, 11

1шт.

12

5186950

FRONT FENDER

ASSY, LH, Contains Ref. 1-7, 10, 11

1шт.

13

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

6шт.

14

15541134

BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9

4шт.

15

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.
